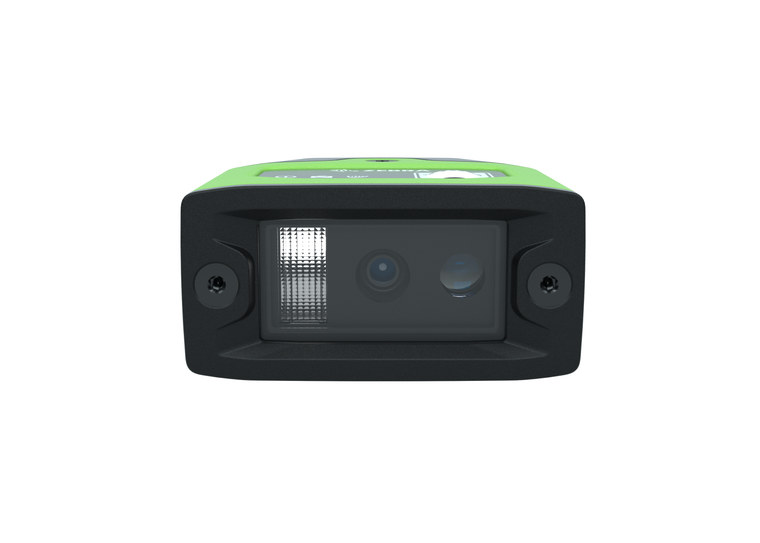

Zebra Technologies FS10-SR10D1-1L02W Fixed Industrial Scanner, 1MP Standard Range, Red and White Light

The Zebra FS10-SR10D1-1L02W is a 1.0 MP FS10-series fixed industrial auto focus scanner with a standard range field of view, red and white illumination, and the Fast 1D/2D decoding toolset with Direct Part Mark (DPM) support. Built on the Zebra Aurora software platform, it reads 1D and 2D barcodes and DPM codes on automated production and packaging lines and can be expanded into a machine vision smart camera with a software license. Automation Distribution supplies the FS10-SR10D1-1L02W as an authorized Zebra distributor.

Specifications

Key Features

• Compact profile delivers high quality scanning wherever you need it.
• Up and running in seconds with plug and play USB connectivity.
• Zebra-exclusive features deliver first-time, every-time data capture.
• With the powerful Zebra Aurora software platform, the FS10 is easy to set up, deploy and run.
• Easily add support for new barcode symbologies or faster data capture with a software license upgrade.

Replacing Discontinued SKUs (Zebra PMB-11980)

Effective September 7, 2026, the FS10-SR10D1-1L02W is the preferred replacement configuration for the following discontinued Zebra SKUs: FS10-SR10E1-1C00W, FS10-SR10F1-1C00W, FS10-SR10F1-1C01W, FS10-SR10F1-1C02W, FS10-SR10F1-1L02W, FS10-SR10G1-1C00W, FS10-SR10Z1-1C00W, FS10-SR10Z1-1C02W. The base hardware is unchanged; the new Fast 1D/2D with DPM decoding toolset includes all decoder tools (Standard, Fast, and DPM).

Depending on the discontinued SKU being replaced, differences include a plastic exit window (replacing glass on some prior configurations), a loud beeper (replacing the standard beeper on some prior configurations).

Driver's license (DL) OCR is available as a separately purchased license, LIC-OCR003-0100.

Order From Automation Distribution

Automation Distribution is an authorized Zebra distributor. For pricing, availability, lead times, or application support on the Zebra FS10-SR10D1-1L02W fixed industrial scanner, contact our team at 1-888-600-3080.
