Description

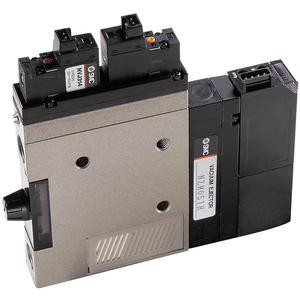

ZM, Vacuum Generator with Valve and Switch (Metric)
Vacuum Generator series ZM is an all-in-one unit, complete with internal suction filter, exhaust silencer, supply and break valve, and vacuum switch. Its dual-stage nozzle design increases suction flow by 40% over single-stage generators, yet its compact size makes it suitable for many different applications. ZM series generators also boast a strong vacuum break pressure for quick cycle times. Available in standalone or manifold configurations.
- Vacuum generator with valve and switch (metric)- Nozzle diameters: .5mm, .7mm, 1mm, 1.3mm and 1.5mm
- Body styles with or without valve
- Various lead wire and connector options
- Various vacuum switch models
- Various vacuum switch electrical entry options
-
Additional Information
Nozzle Diameter: |
??1.0 |
Body Style: |
Single Unit w/Valve + Standard Silencer |
Vacuum Port Location: |
Side/Bottom Entry |
Standard Supply Pressure: |
0.5 MPa |
Thread Type: |
Rc |
Supply/Release Valve: |
Supply Valve+Release Valve |
Solenoid Valve Rated Voltage: |
24VDC |
Electrical Entry: |
L Plug w/o Connector |
Light/Surge Voltage Suppressor: |
w/Light/Surge Voltage Suppressor |
Manual Override: |
Non-locking Push Style |
Vacuum Switch Model: |
1 Output w/o Analog Output, Diaphragm 18 Rotation Setting, Reed 100 VAC |
Vacuum Switch Electrical Entry: |
Grommet Lead Wire 3m: ZSE1, ZSM1 |
Release Flow Rate Adjusting Needle: |
Without Lock Nut |
