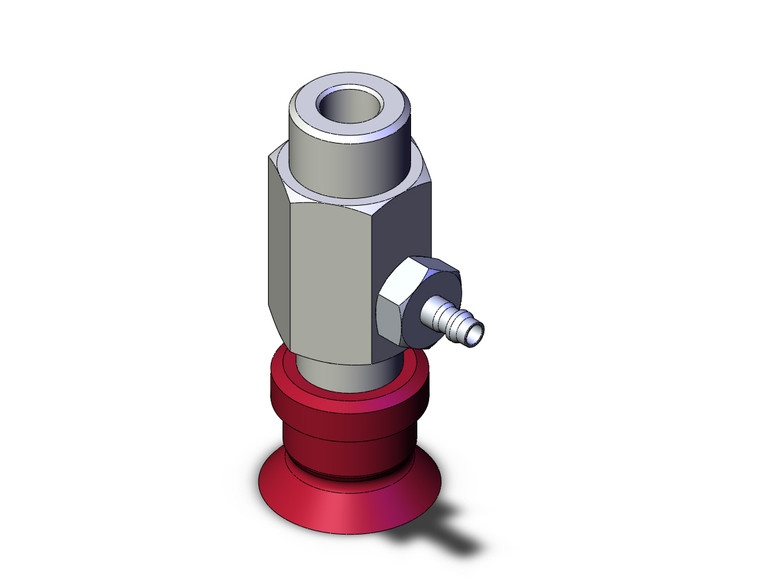

SMC ZPY13US-N4-B5 Vacuum Pad, Zp, Zp2, Zp3

(No reviews yet) Write a Review
SKU:
ZPY13US-N4-B5
Condition:
New
Availability:
In stock: 22
$11.15

Description

ZPY (U,C,D,B,UT,CT), Vacuum Pad, Lateral Entry, Barb Fitting

ZPX, ZPY and ZP2 series vacuum cups are ideal for heavy weight material or objects with a large surface area. The lateral vacuum entry available with or without buffer. The versatile design can be used for a wide number of applications. The variety of cup material and designs give great freedom to the designer when solving application problems. Using special materials in the cups such as conductive materials that help ensure static discharge further broaden their uses.

- Laterial vacuum entry without buffer series
- Pad diameter: 02, 04, 06, 08, 10, 13, 16, 20, 25, 32, 40, 50 (mm)
- Material: NBR, silicon rubber, urethane rubber, flourine rubber, EPR
- Multiple vacuum entry/mounting thread diameters
-

Series Catalog

AutoCAD File

View AllClose

Additional Information

Barb 4 Nylon Tubing:
Mounting Thread
Silicon Rubber:
Vacuum Entry
Flat Style:
Material
13:
Pad Styles
ZPY:
Pad Diameter
SMC:
Series
Mounting Thread:
Female Thread M5X0.8
Vacuum Entry:
Barb 4 Nylon Tubing
Material:
Silicon Rubber
Pad Styles:
Flat Style
Pad Diameter:
Flat+Flat with Ribs+Bellows+Compact+Compact with Ribs
