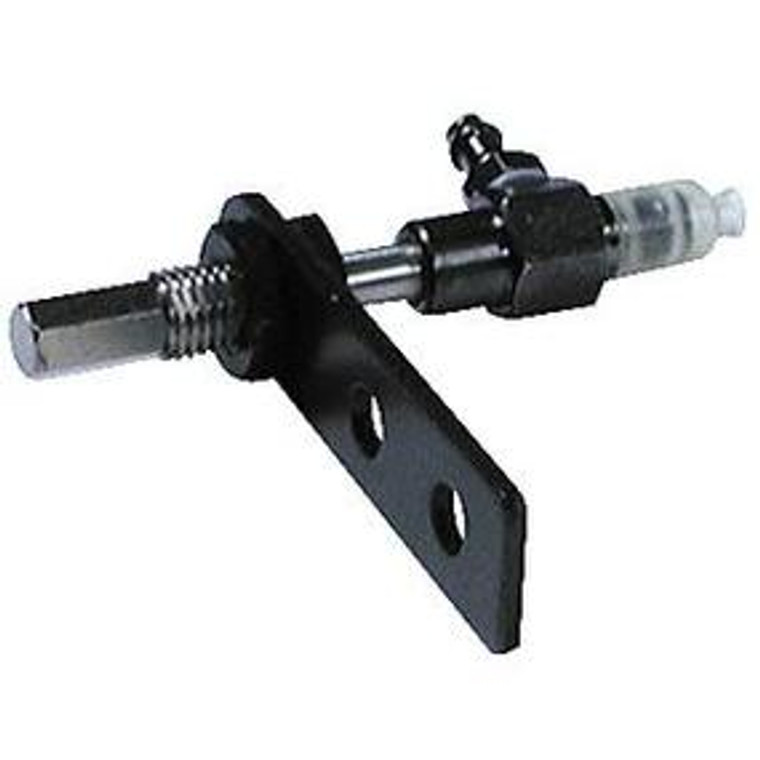

SMC ZPY1-N4-B5 y type adaptor, zp series, ZP VACUUM PAD***

SMC ZPY40CS-N6-B6 ZP Series Vacuum Pads/Basic Pad Flat Type With Ribs With Adapter

SMC
SKU:
ZPY40CS-N6-B6
Availability:
Factory stock
$13.10
Condition:
New
Current Stock:
Description

ZP Series Vacuum Pads/Basic Pad Flat Type With Ribs With Adapter

  • 12 sizes, 6 types of pad forms The mounting bracket;?can be selected according to the application.;
  • Pad form: Flat type, Flat type with ribs, Bellows type,Thin flat type, Thin flat type with ribs, Deep type;
  • Mounting: Male thread, Female thread;
  • Vacuum inlet direction: Vertical, Lateral;
  • Vacuum inlet: Male thread, Female thread, One-touch fitting, Barb fitting;
  • Buffer: Without, With;?[Buffer stroke [mm]: 6, 10, 15, 20, 25, 30, 40, 50]
    • Additional Information
    Adapter (Lock Ring) Material:
    Brass
    Vacuum Inlet Direction:
    Lateral (With Barb Fitting)
    Pad Diameter:
    ?40 mm
    Pad Form:
    Flat With Ribs
    Material:
    Silicone Rubber
    Vacuum Inlet:
    For ?6 Nylon Tubing Barb Fitting
    Connection:
    M6x1 Female Thread
