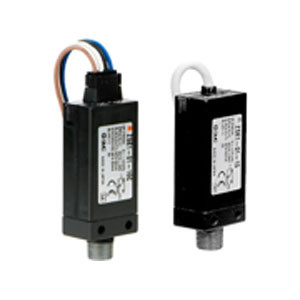

SMC ZSE1-00-16C Vacuum Switch, Zse1-6

(No reviews yet) Write a Review
SKU:
ZSE1-00-16C
Condition:
New
Piping Specification:
00 (ZM Ejector Mounting)
Output Specification:
16 (NPN Open Collector 2 Outputs, w/o Analog Output, 3 Rotation setting)
Wiring Specification:
C (Plug Connector
$123.65

Description

ZSE1, Vacuum Switch, Single Mount or for ZM Vacuum Generator

ZSE1 is a basic vacuum switch with digital output and optional analog voltage output. The ZSE1 monitors vacuum level down to -101 kPa. ZSE1 can be mounted in a ZM vacuum generator system, or by metric or NPTF male threads. Rotary trimmers adjust the switch set point and variable hysteresis if 1 output, or two set point trimmers if 2 output. A red/green LED indicator also lights when the output signal in ON. Electrical connections include a 3 wire grommet cable or 4 wire snap-in connector. ZSE1 is CE and RoHS compliant, with an IP40 enclosure rating.

- Basic vacuum switch with rotary adjustment of digital outputs, plus 1-5V output
- Vacuum range: -101 to 0 kPa
- Output options: 1 or 2 signal outputs (NPN or PNP), with or without analog voltage
- Power supply requirement: 12 to 24 VDC
- Repeatability: 1% of F.S.
- Port sizes: 1/8 Rc, 1/8 NPTF male, or ZM genertor mountable
-

Series Catalog

AutoCAD File
