Description
Overview
Abb

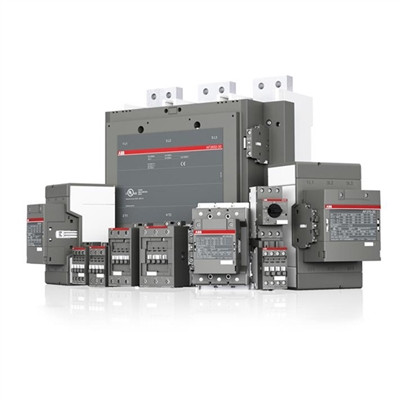

Ac Non-Reversing Iec Contactors, Af Series
Item# Af146-30-11B-33
Ctr Af146 3Pole 100-250V 1No1Nc
Specifications
Item Number: &Nbsp;
Af146-30-11B-33
Upc: &Nbsp;
888614432024
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Af
Coil Voltage:
100~250 Vac/Vdc
Coil Type:
Magnetic
Poles:
3No
Auxiliary Contacts:
1No; 1Nc
Termination:
Box Lug
General Purpose (Ac1):
225 Amps
Ul Motor Switching (Ac3):
146 Amps
Max Hp 200/208V 3Ph:
40 Horsepower
Max Hp 230/240V 3Ph:
50 Horsepower
Max Hp 460/480V 3Ph:
100 Horsepower
Max Hp 575/600V 3Ph:
125 Horsepower
Comments:
With Bar Connection
H X W X D:
5.91 In X 3.54 In X 4.96 In
&Nbsp;&Nbsp;Net Weight:
3 Lb 5 Oz
