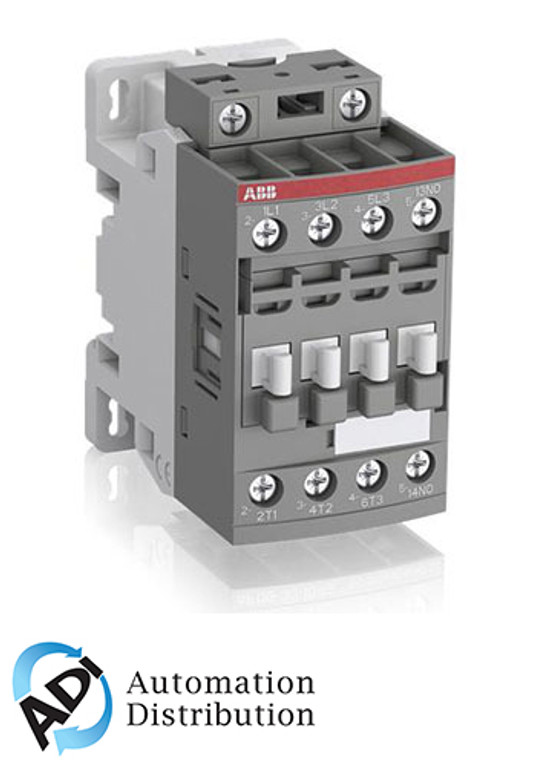

ABB AF16-30-10-12 af16 3p contr, 1no, 48-130vac/dc

(No reviews yet) Write a Review
SKU:
AF16-30-10-12
Condition:
New
  • ABB AF16-30-10-12 af16 3p contr, 1no, 48-130vac/dc
  • ABB AF16-30-10-12 af16 3p contr, 1no, 48-130vac/dc
  • ABB Contactor AF16-30-10-12 AF16 3P CONTR 1NO 48-130VAC/DC
  • ABB Contactor AF16-30-10-12 AF16 3P CONTR 1NO 48-130VAC/DC
  • ABB Contactor AF16-30-10-12 AF16 3P CONTR 1NO 48-130VAC/DC
$188.22

Description

Overview

Abb

Ac Non-Reversing Iec Contactors, Star Series

Item# Af16-30-10-12 - Contactor, 3-P N/O, 48-130Vac/Dc Coil, Includes 1No Aux Contact

Star Series Information
  • Af Contactors Can Manage Large Control Voltage Variations - One Coil Can Be Used For Different Control Voltages Used Worldwide Without Any Coil Change
  • The Built-In N.C. Auxiliary Contact Is A Mirror Contact In Compliance With Annex F Of Iec 60947-4-1
  • Af Contactors Have Built-In Surge Protection And Do Not Require Additional Surge Suppressors
  • Only Four Coils Cover Control Voltages Between 24-500 V 50/60 Hz Or 20-500 V Dc
  • Electronic Coil Interface Accepts A Wide Control Voltage Range
Af09- Af30 Contactors Are Used For Controlling Power Circuits Up To 600 V Ac And 240 V Dc. They Are Mainly Used For Controlling 3-Phase Motors, Non-Inductive Or Slightly Inductive Loads.

Specifications

Item Number: &Nbsp;
Af16-30-10-12
Upc: &Nbsp;
804325538558
Brand:
Abb
Item Category:
Contactors
Subcategory:
Ac Non-Reversing Iec
Series:
Star
Coil Voltage:
48~130 Vac/48~130 Vdc
Coil Type:
Electronic
Poles:
3No
Auxiliary Contacts:
1No
Termination:
Screw
General Purpose (Ac1):
30 Amps
Ul Motor Switching (Ac3):
18 Amps
Max Hp 115V 1Ph:
1.5 Horsepower
Max Hp 230/240V 1Ph:
3 Horsepower
Max Hp 230/240V 3Ph:
5 Horsepower
Max Hp 460/480V 3Ph:
10 Horsepower
Max Hp 575/600V 3Ph:
15 Horsepower
Approvals:
Culus
H X W X D:
3.4 In X 1.75 In X 3.05 In
&Nbsp;&Nbsp;Net Weight:
9.76 Oz
&Nbsp;&Nbsp;Gross Weight:
10.4 Oz
