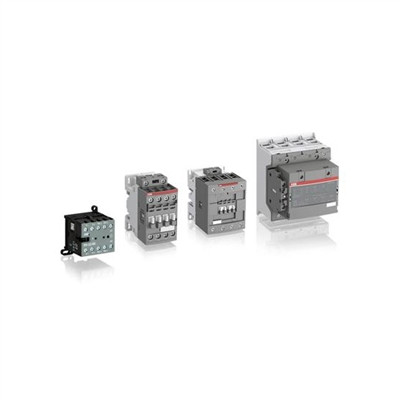

ABB AF16Z-22-00-21 4-Pole Contactor, 24-60VAC/20-60VDC, SEMI F47 Compliant, Built-In Surge Protection
ABB
$132.54
The AF16Z-22-00-21 is a versatile 4-pole contactor designed for controlling power circuits up to 690 V AC and 440 V DC. Ideal for managing non-inductive or slightly inductive loads such as resistance furnaces, this contactor features an electronic coil interface that accommodates a wide range of control voltages, from 24 to 250 V AC/DC. With only four coils needed to cover these voltages, it simplifies global applications without requiring coil changes. The AF16Z contactor is engineered to handle significant control voltage variations, ensuring reliable performance even in unstable networks. It supports direct control by PLC outputs of 24 V DC 500 mA and boasts reduced holding coil consumption. Compliant with SEMI F47-0706 standards, it withstands short voltage dips and sags. Built-in surge protection eliminates the need for additional suppressors, offering a compact and efficient solution. The block-type design includes 2 N.O. + 2 N.C. main poles and allows for easy expansion with front and side-mounted auxiliary contact blocks. Suitable for both AC and DC operation, the AF16Z-22-00-21 can control motors up to 7.5 kW at 400 V AC and switch power circuits up to 30 A. A wide range of accessories is available to enhance its functionality.
- Terminal Type:
- Screw Terminals
- Rated Control Circuit Voltage:
- 50 Hz /60 Hz 24 ... 60 V / DC Operation 20 ... 60 V
- Spec Sheet:
- View
