ABB AF185R-30-11-70 ab af185r301170 af185 rev contr,100

(No reviews yet) Write a Review
SKU:
AF185R-30-11-70
Condition:
New
QN-QUOTE-REQUEST:
true
  • ABB AF185R-30-11-70 ab af185r301170 af185 rev contr,100
  • ABB AF185R-30-11-70 ab af185r301170 af185 rev contr,100
  • ABB Contactor AF185R-30-11-70 AF185 REV CONTR 100-250V AC/DC
  • ABB Contactor AF185R-30-11-70 AF185 REV CONTR 100-250V AC/DC
  • ABB Contactor AF185R-30-11-70 AF185 REV CONTR 100-250V AC/DC
$6,174.64

Description

Overview

ABB

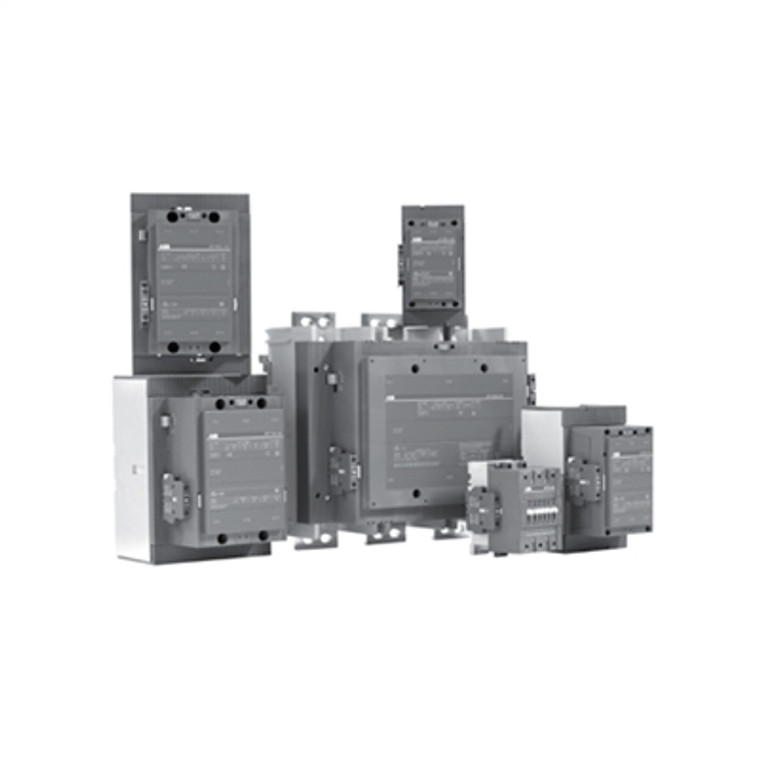

AC Reversing IEC Contactors, AF Series

Item# AF185R-30-11-70 - AF185 REV CONTACTOR

AF Series Information
  • AC or DC Operated Control Circuit with Electronic Coil Interface Accepting a Wide Control Voltage Range - Only 4 Control Voltage Ranges Covering 24 to 500 VAC 50/60 Hz and 20 to 500 VDC
  • Add-on Auxiliary Contact Blocks for Front or Side Mounting and a Wide Range of Accessories
  • Can Manage Large Control Voltage Variations
  • Reduced Panel Energy Consumption
  • Very Distinct Closing and Opening.
  • Built-in Surge Suppression
AF reversing contactors are mainly used for directionally controlling 3-phase motor circuits up to 690V AC. These devices include two 3-pole contactors, a mechanical interlock, side-mounted auxiliary contacts for electrical interlocking, power bus (see diagram to the left), and are assembled using fixing clips or back mounting plate.

Specifications

Item Number:
AF185R-30-11-70
UPC:
804325400626
Brand:
ABB
Item Category:
Contactors
Subcategory:
AC Reversing IEC
Series:
AF
Nominal Coil Voltage:
120 VAC;208 VAC;240 VAC;120 VDC;240 VDC
Coil Voltage:
100~250 VAC/VDC
Coil Type:
Magnetic
Poles:
3NO
Auxiliary Contacts:
2NO; 2NC
Termination:
Screw
Max HP 200/208V 3PH:
50 Horsepower
Max HP 230/240V 3PH:
60 Horsepower
Max HP 460/480V 3PH:
125 Horsepower
Max HP 575/600V 3PH:
150 Horsepower
General Purpose (AC1):
250 Amps
UL Motor Switching (AC3):
156 Amps
  Net Weight:
1 lb
  Gross Weight:
1 lb
