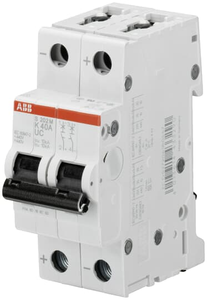

ABB S202MUC-C13 mcb s200muc 2p c 13a ac/dc

(No reviews yet) Write a Review
SKU:
S202MUC-C13
Condition:
New
$411.57

Description

Overview

Abb

Miniature Circuit Breakers, S200Muc Series

Item# S202Muc-C13 - Mcb S200Muc 2P C 13A Ac/Dc

S200Muc Series Information
  • Available With Variable Depth Handle Mechanism
  • Fast Breaking Time (2.3 2.5 Ms)
  • Wide Range Of Accessories
  • Suitable For Reverse Feed
  • Multi-Function Terminals
  • Bus Connection System
  • Finger Safe Terminals
  • Din Rail Mounting
  • Energy Limiting
The S200 Ul 1077 Family Of Supplementary Protectors Offers A Compact Solution For Protection Requirements. The S200 Devices Are Din Rail Mounted. The S200 Family Is Available With Application-Specific Trip Characteristics To Provide Maximum Circuit Protection. The Supplementary Protectors Offer Thermal Magnetic Trip Protection According To B, C, D, K And Z Characteristics.

Specifications

Item Number: &Nbsp;
S202Muc-C13
Upc: &Nbsp;
888614273542
Brand:
Abb
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200Muc
Poles:
2
Amps:
13
Ul Standard:
1077&Nbsp;&Nbsp;
Trip Curve:
C&Nbsp;&Nbsp;
Terminal Type:
Screw
Max Voltage:
480Y/277 Vac;250 Vdc;500 Vdc
Shunt Trip:
Optional
Protection:
Supplemental
Auxiliary Switch:
Optional
Undervoltage Release:
Optional
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Din Rail
Neutral Pole:
No
Csa Standard:
22.2
Kaic @ 277/480 Vac:
6
Kaic @ 250 Vdc:
10
Kaic @ 500 Vdc:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
Ul;Csa
Rohs:
No
H X W X D:
3.46 In X 1.38 In X 2.72 In
