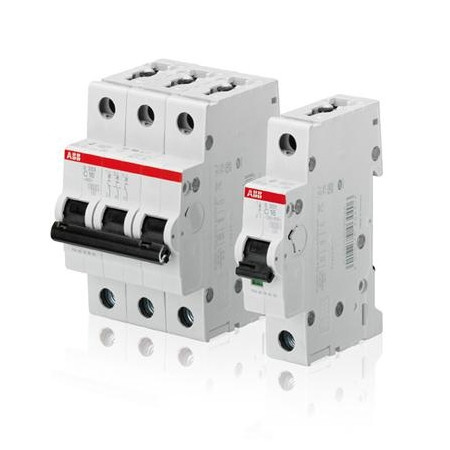

ABB mcb s500 1p uc-b 20a s500-s800 mini circuit breakers S501UC-B20

(No reviews yet) Write a Review
SKU:
S501UC-B20
Condition:
New
QN-QUOTE-REQUEST:
true
  • ABB mcb s500 1p uc-b 20a s500-s800 mini circuit breakers S501UC-B20
  • ABB mcb s500 1p uc-b 20a s500-s800 mini circuit breakers S501UC-B20
$300.93

Description

Overview

ABB

Miniature Circuit Breakers, S500UC Series

Item# S501UC-B20 - Circuit Breaker

S500UC Series Information
  • Fast Breaking Time (2.3 - 2.5 ms)
  • Wide Range of Accessories
  • Multi-Functional Terminals
  • High Breaking Capacity
  • Finger Safe Terminals
  • Adjustable Trip Unit
  • DIN Rail Mounting
The S500 high performance MCB offers a compact solution to circuit protection. The S500 devices are UL tested current limiting and DIN rail mounted. The S500 is available with application specific trip characteristics to provide maximum circuit protection. The breakers offer thermal-magnetic trip protection according to B and K characteristics.

Specifications

Item Number:
S501UC-B20
UPC:
6620195338110
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S500UC
Poles:
1
Amps:
20
UL Standard:
1077
Trip Curve:
B
Terminal Type:
Screw
Max Voltage:
277 VAC;250 VDC
Shunt Trip:
No
Protection:
Supplemental
Auxiliary Switch:
Optional
Undervoltage Release:
No
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
kAIC @ 240 VAC:
18
CSA Standard:
22.2
kAIC @ 277 VAC:
14
kAIC @ 250 VDC:
30
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL;CSA
H x W x D:
3.64 in x .98 in x 3.62 in
  Net Weight:
10.5687 oz
  Gross Weight:
10.5687 oz
