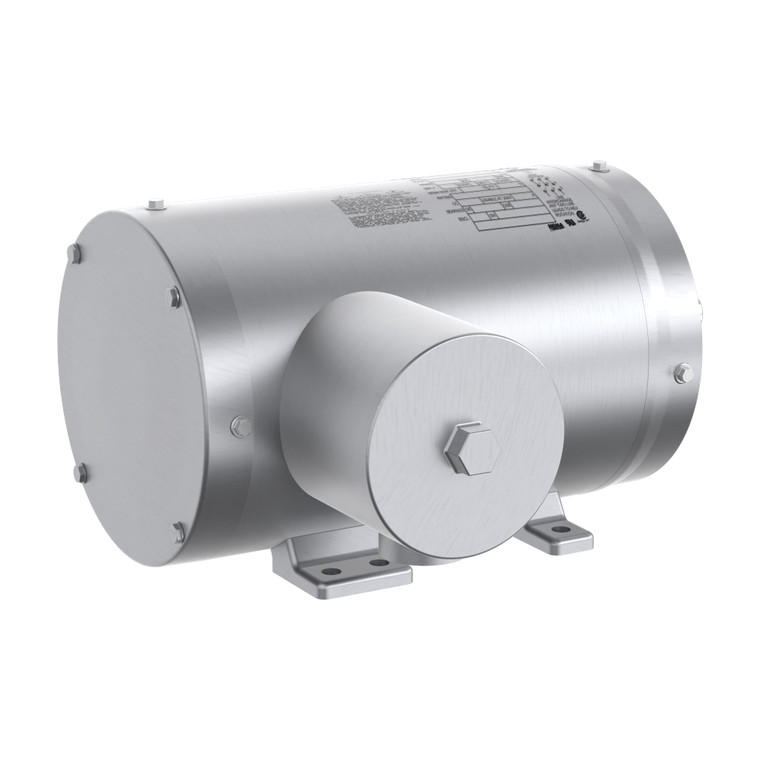

ABB Baldor-Reliance CFSSP5M3558T-E-G 2 HP 1800 RPM 145TC TENV Stainless Super Premium PM Washdown Motor

ABB Baldor-Reliance CFSSP5M3558T-E-G 2 HP 1800 RPM 145TC TENV Stainless Super Premium PM Washdown Motor

ABB Baldor-Reliance
SKU:
CFSSP5M3558T-E-G
|
UPC:
781568598511
$3,900.16
Condition:
New
Current Stock:
Description
CFSSP5M3558T-E-G
Baldor-Reliance 2 HP Stainless Super Premium PM Washdown Motor
2HP, 1800RPM, 3PH, 60HZ, 145TC, 3524B, TENV, F1
2 HP1800 RPM145TC FrameTENV230/460 V3-Phase

Specifications

Catalog NumberCFSSP5M3558T-E-G
Output (HP)2
Speed (RPM)1800
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)4.6/2.3
Phase3
Frequency (Hz)60.00
Frame145TC
Frame MaterialStainless Steel
EnclosureTENV
NEMA Nominal Efficiency (%)89.5
Service Factor1.15
Insulation ClassH
Power Factor96
Motor Type3524B
Motor Letter TypeBrushless Wound Field PM Rotor
Mounting ArrangementF1
BaseRigid
Shaft Diameter (in)0.875
Overall Length (in)12.86
Duty RatingCONT
Ambient Temperature (C)40
Max Speed (RPM)4000
InverterInverter Code 03
Matched DriveACS380-04XX-06A9-2 / 03A3-4
Bearing GreasePolyrex EM
Shaft GroundingShaft Grounding
Agency ApprovalsC UR US, WEEE

Application & Design Notes

The CFSSP5M3558T-E-G is a Baldor-Reliance stainless super-premium washdown motor built on a Brushless Wound Field PM Rotor design and matched to the ABB ACS380-04XX-06A9-2 / 03A3-4 drive for variable-speed operation from a single stainless package. The stainless steel frame, TENV enclosure, unpainted finish, and Polyrex EM bearing grease suit repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 89.5% nominal efficiency at 1.15 service factor with Class H insulation, dual 230/460 V wiring, and shaft grounding for inverter-fed reliability.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the CFSSP5M3558T-E-G, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
2 HP
Speed:
1800 RPM
Poles:
4
Voltage:
230/460 V
Full Load Amps:
4.6/2.3 A
Phase:
3
Frequency:
60.00 Hz
Frame:
145TC
Enclosure:
TENV
Efficiency:
89.5%
Service Factor:
1.15
Insulation Class:
H
