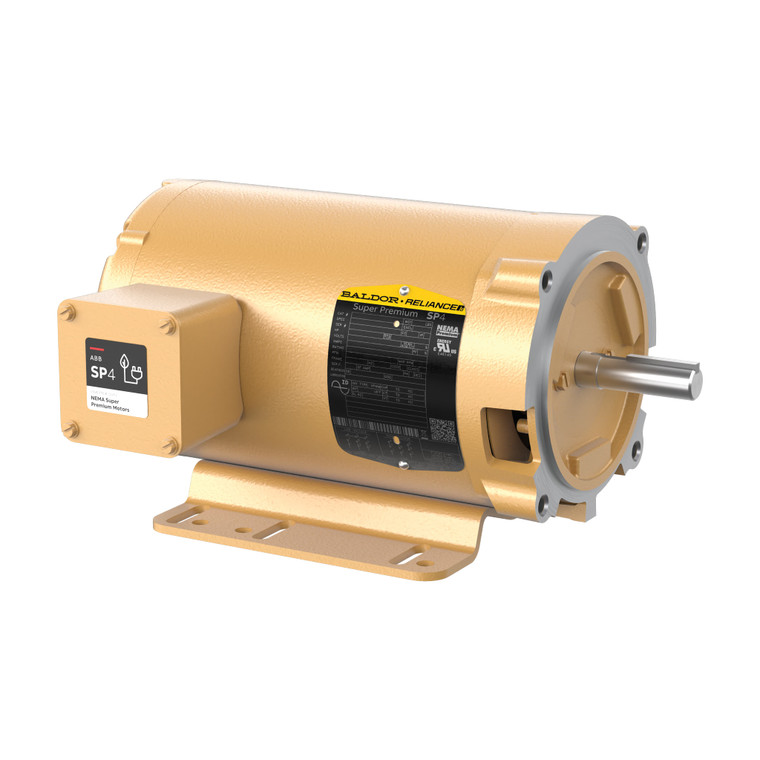

ABB Baldor-Reliance CSPM31104 .333 HP 1740 RPM 56HC ODP Three-Phase SP4 Super Premium Motor
ABB Baldor-Reliance
$635.72
CSPM31104
Baldor-Reliance .333 HP Three-Phase SP4 Super Premium Motor
.333HP,1740RPM,3PH,60HZ,56HC,3416M,ODP,F
.333 HP1740 RPM56HC FrameODP230/460 V3-Phase
Specifications
| Catalog Number | CSPM31104 |
| Output (HP) | .333 |
| Speed (RPM) | 1740 |
| Synchronous Speed (RPM) | 1800 |
| Number of Poles | 4 |
| Voltage (V @ 60 Hz) | 230/460 |
| Full Load Amps (A) | 0.5 |
| Phase | 3 |
| Frequency (Hz) | 60.00 |
| Frame | 56HC |
| Frame Material | Steel |
| Enclosure | ODP |
| NEMA Nominal Efficiency (%) | 77.0 |
| Service Factor | 1.15 |
| Insulation Class | F |
| Motor Type | 3416M |
| Motor Letter Type | Three Phase |
| Mounting Arrangement | F1 |
| Overall Length (in) | 11.75 |
| Duty Rating | CONT |
| Ambient Temperature (C) | 40 |
| Inverter | Suitable for inverter use (NEMA MG1 Part 31.4.4.2) |
Application & Design Notes
The CSPM31104 is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated .333 HP at 1740 RPM in a 56HC steel frame with a ODP enclosure. SP4 Super Premium efficiency (77.0% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Suitable for inverter use per NEMA MG1 Part 31.4.4.2. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the CSPM31104, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- .333 HP
- Speed:
- 1740 RPM
- Poles:
- 4
- Voltage:
- 230/460 V
- Full Load Amps:
- 0.5 A
- Phase:
- 3
- Frequency:
- 60.00 Hz
- Frame:
- 56HC
- Enclosure:
- ODP
- Efficiency:
- 77.0%
- Service Factor:
- 1.15
- Insulation Class:
- F
