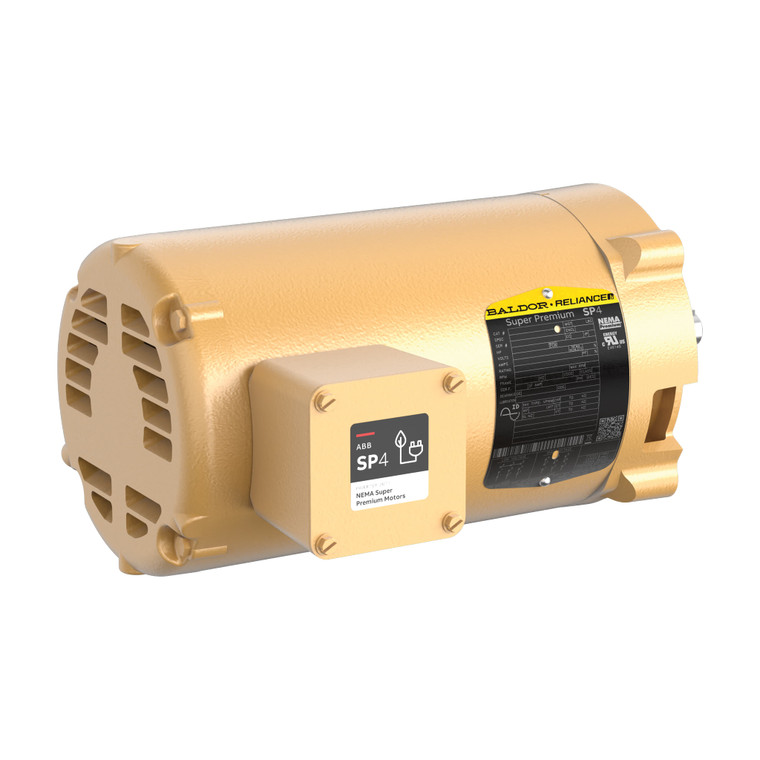

ABB Baldor-Reliance VSPM31104 .333 HP 1740 RPM 56C ODP Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance VSPM31104 .333 HP 1740 RPM 56C ODP Three-Phase SP4 Super Premium Motor

ABB Baldor-Reliance
SKU:
VSPM31104
|
UPC:
781568599983
$635.72
Condition:
New
Current Stock:
Description
VSPM31104
Baldor-Reliance .333 HP Three-Phase SP4 Super Premium Motor
.333HP,1740RPM,3PH,60HZ,56C,3416M,ODP,F1
.333 HP1740 RPM56C FrameODP230/460 V3-Phase

Specifications

Catalog NumberVSPM31104
Output (HP).333
Speed (RPM)1740
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)0.5
Phase3
Frequency (Hz)60.00
Frame56C
Frame MaterialSteel
EnclosureODP
NEMA Nominal Efficiency (%)77.0
Service Factor1.15
Insulation ClassF
Motor Type3416M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Overall Length (in)11.75
Duty RatingCONT
Ambient Temperature (C)40
InverterNot for inverter use

Application & Design Notes

The VSPM31104 is a Baldor-Reliance three-phase SP4 Super Premium general-purpose motor rated .333 HP at 1740 RPM in a 56C steel frame with a ODP enclosure. SP4 Super Premium efficiency (77.0% nominal at full load) reaches NEMA Super Premium (IEC IE4), above NEMA Premium, for lower operating cost across the line. Runs on 230/460V three-phase power at 1.15 service factor with Class F insulation and a 48-month warranty. Not rated for inverter use. Suited to pumps, fans, blowers, conveyors, compressors, and general industrial machines.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the VSPM31104, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
.333 HP
Speed:
1740 RPM
Poles:
4
Voltage:
230/460 V
Full Load Amps:
0.5 A
Phase:
3
Frequency:
60.00 Hz
Frame:
56C
Enclosure:
ODP
Efficiency:
77.0%
Service Factor:
1.15
Insulation Class:
F
