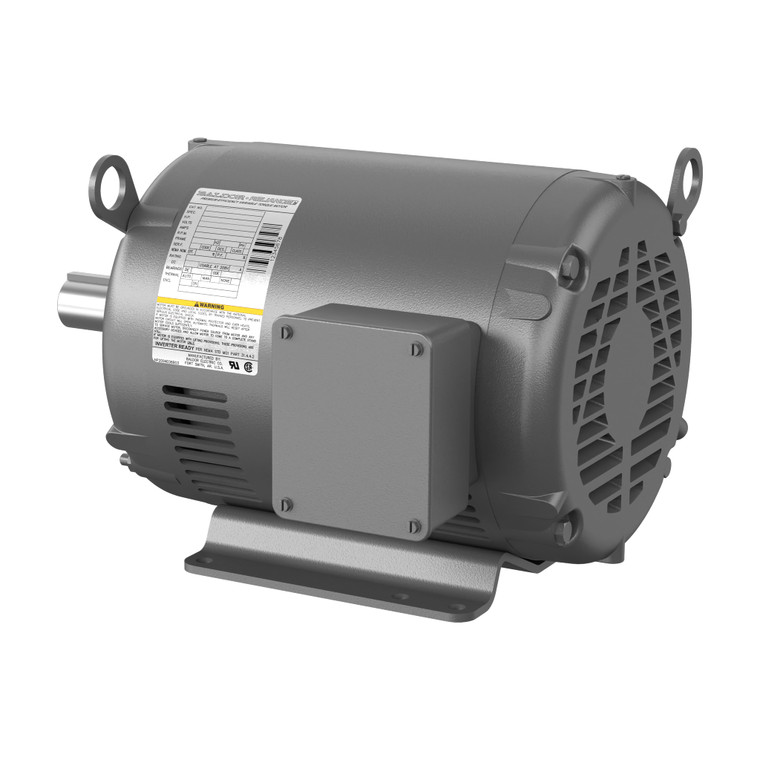

ABB Baldor-Reliance EHFM3311T-8 7.5 HP 1770 RPM 213T ODP Three-Phase General Purpose Motor

ABB Baldor-Reliance EHFM3311T-8 7.5 HP 1770 RPM 213T ODP Three-Phase General Purpose Motor

ABB Baldor-Reliance
SKU:
EHFM3311T-8
|
UPC:
781568520048
$1,335.31
Condition:
New
Current Stock:
Description
EHFM3311T-8
Baldor-Reliance 7.5 HP Three-Phase General Purpose Motor
7.5 HP, 1770RPM, 3PH, 200V, 213T, ODP
7.5 HP1770 RPM213T FrameODP200 V91 % eff

Specifications

Catalog NumberEHFM3311T-8
Output7.5 HP
Speed (RPM)1770
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V)200
Full Load Amps (A)22.2
Phase3
Frequency (Hz)60
Frame213T
Frame MaterialSteel
EnclosureOpen Drip Proof (ODP)
NEMA Nominal Efficiency (%)91 %
Power Factor79
Service Factor1.15
Insulation ClassB
NEMA DesignA
Duty CycleContinuous
Ambient Temperature40 °C
Overall Length16.32 in
MountingF2
Shaft GroundingNo Shaft Grounding
InverterInverter Duty
Agency ApprovalsCSA, UR
Product LineHVAC, General purpose

Application & Design Notes

The EHFM3311T-8 is a Baldor-Reliance three-phase general purpose motor rated 7.5 HP at 1770 RPM in a 213T steel frame with a ODP enclosure. It delivers 91 % nominal efficiency at 1.15 service factor. Open drip proof cooling suits clean, dry, indoor duty. Class B insulation and a 1.15 service factor make it a versatile workhorse for pumps, fans, blowers, conveyors, compressors, and general industrial machines, direct on line or on a variable frequency drive.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, or application help on the EHFM3311T-8, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
7.5 HP
Speed:
1770 RPM
Poles:
4
Voltage:
200 V
Full Load Amps:
22.2 A
Phase:
3
Frequency:
60 Hz
Frame:
213T
Enclosure:
ODP
Efficiency:
91%
Service Factor:
1.15
Insulation Class:
B
