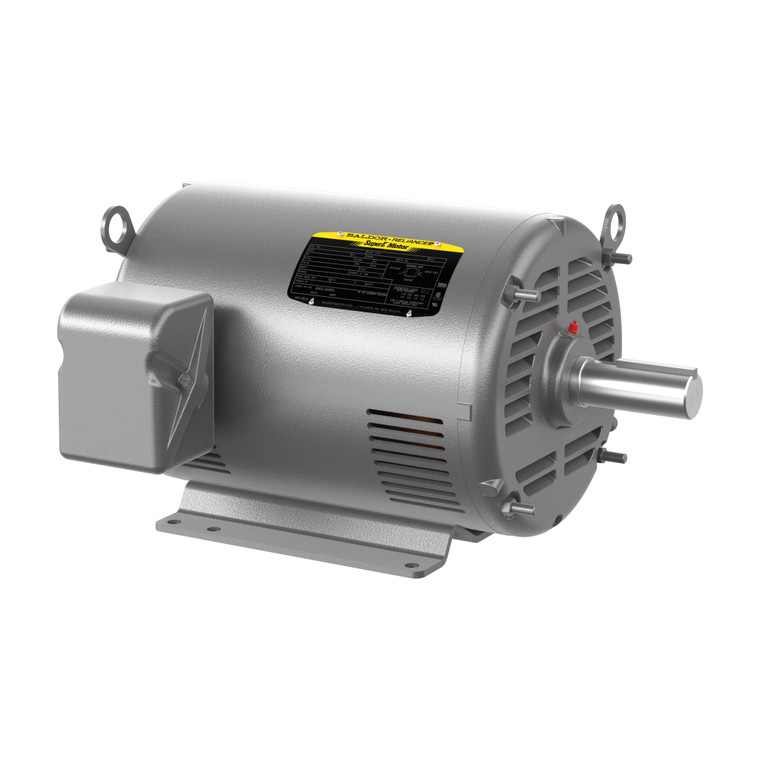

ABB Baldor-Reliance GNEM2513T 15 HP 1770 RPM 254T ODP Three-Phase General Purpose Motor

ABB Baldor-Reliance GNEM2513T 15 HP 1770 RPM 254T ODP Three-Phase General Purpose Motor

ABB Baldor-Reliance
SKU:
GNEM2513T
|
UPC:
781568581032
$3,340.51
Condition:
New
Current Stock:
Description
GNEM2513T
Baldor-Reliance 15 HP (11 kW (50 Hz)) Three-Phase General Purpose Motor
15 HP (11 kW (50 Hz)), 1770RPM, 3PH, 190/380//208-230/460V, 254T, ODP
15 HP (11 kW (50 Hz))1770 RPM254T FrameODP190/380//208-230/460 V93 % eff

Specifications

Catalog NumberGNEM2513T
Output15 HP (11 kW (50 Hz))
Speed (RPM)1770
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V)190/380//208-230/460
Full Load Amps (A)40-38/19//44/22
Phase3
Frequency (Hz)60 / 50
Frame254T
Frame MaterialSteel
EnclosureOpen Drip Proof (ODP)
NEMA Nominal Efficiency (%)93 %
Power Factor81
Service Factor1.15
Insulation ClassF
NEMA DesignA
Duty CycleContinuous
Ambient Temperature40 °C
Overall Length23.19 in
MountingF1
Shaft GroundingNo Shaft Grounding
Agency ApprovalsC UR US, CE, IE3, NEMA_PREMIUM, UKCA, WEEE
Product LineGNEM, General Purpose, Open

Application & Design Notes

The GNEM2513T is a Baldor-Reliance three-phase general purpose motor rated 15 HP (11 kW (50 Hz)) at 1770 RPM in a 254T steel frame with a ODP enclosure. This is a dual-rated global motor, usable at 60 Hz and 50 Hz. It delivers 93 % nominal efficiency at 1.15 service factor. Open drip proof cooling suits clean, dry, indoor duty. Class F insulation and a 1.15 service factor make it a versatile workhorse for pumps, fans, blowers, conveyors, compressors, and general industrial machines, direct on line or on a variable frequency drive.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, or application help on the GNEM2513T, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
15 HP
Speed:
1770 RPM
Poles:
4
Voltage:
190/380//208-230/460 V
Full Load Amps:
40-38/19//44/22 A
Phase:
3
Frequency:
60 / 50 Hz
Frame:
254T
Enclosure:
ODP
Efficiency:
93%
Service Factor:
1.15
Insulation Class:
F
