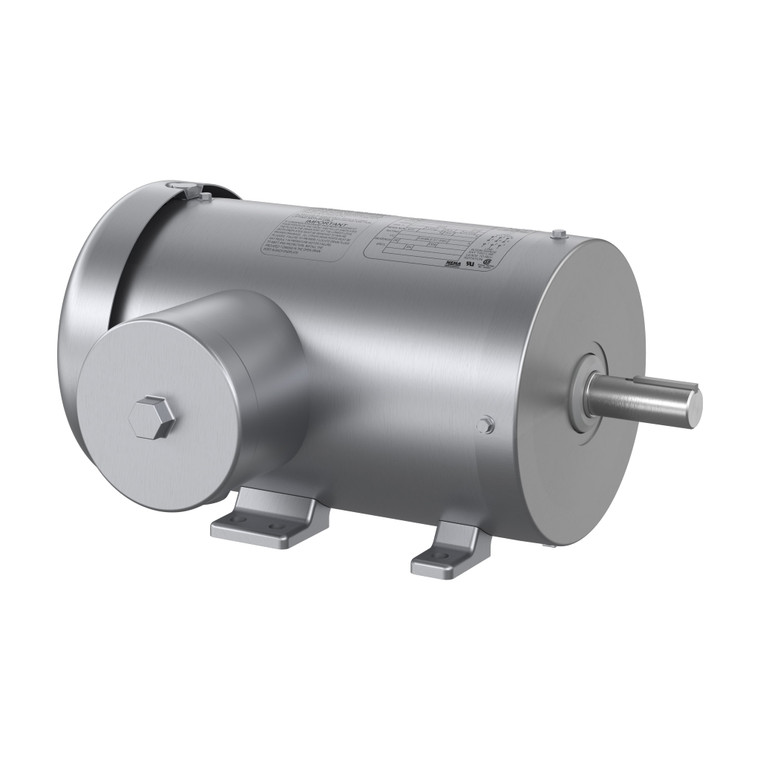

ABB Baldor-Reliance FSWDM3551TP-E1 3 HP 1700 RPM 145T TEFC Stainless Washdown Motor

ABB Baldor-Reliance FSWDM3551TP-E1 3 HP 1700 RPM 145T TEFC Stainless Washdown Motor

ABB Baldor-Reliance
SKU:
FSWDM3551TP-E1
|
UPC:
781568677735
$3,672.60
Condition:
New
Current Stock:
Description
FSWDM3551TP-E1
Baldor-Reliance 3 HP Stainless Washdown Motor
3HP, 1700RPM, 3PH, 60HZ, 145T, 3546M, TEFC, N
3 HP1700 RPM145T FrameTEFC230/460 V3-Phase

Specifications

Catalog NumberFSWDM3551TP-E1
Output (HP)3
Speed (RPM)1700
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V @ 60 Hz)230/460
Full Load Amps (A)8.6/4.3
Phase3
Frequency (Hz)60.00
Frame145T
Frame MaterialStainless Steel
EnclosureTEFC
NEMA Nominal Efficiency (%)81.5
Service Factor1.00
Insulation ClassH
Power Factor78
Design CodeD
KVA CodeK
Motor Type3540M
Motor Letter TypeThree Phase
Mounting ArrangementF1
BaseRigid
Shaft Diameter (in)0.875
Overall Length (in)16.28
Duty RatingCONT
Ambient Temperature (C)40
InverterNot Inverter
Bearing GreasePolyrex EM
Agency ApprovalsC UR US, WEEE
Lead TerminationFlying Leads

Application & Design Notes

The FSWDM3551TP-E1 is a Baldor-Reliance stainless washdown motor in a 145T stainless steel frame with a TEFC enclosure, unpainted finish, and Polyrex EM bearing grease for repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 81.5% nominal efficiency at 1.00 service factor with Class H insulation and Not Inverter capability. C-face mounting and sealed bearings ease integration on pumps, conveyors, and OEM equipment.

Spec note: Page conflicts: Speed spec=1690 vs nameplate/H1=1700 (used 1700); FLA spec=8.2/4.1 vs nameplate=8.6/4.3 (used 8.6/4.3); KVA code nameplate=K vs spec=H (used K); Motor Type H1=3546M vs spec=3540M; PF spec=80 vs nameplate=78 (used 78); ship wt header=59 vs nameplate WT=63. VERIFY.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the FSWDM3551TP-E1, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
3 HP
Speed:
1700 RPM
Poles:
4
Voltage:
230/460 V
Full Load Amps:
8.6/4.3 A
Phase:
3
Frequency:
60.00 Hz
Frame:
145T
Enclosure:
TEFC
Efficiency:
81.5%
Service Factor:
1.00
Insulation Class:
H
