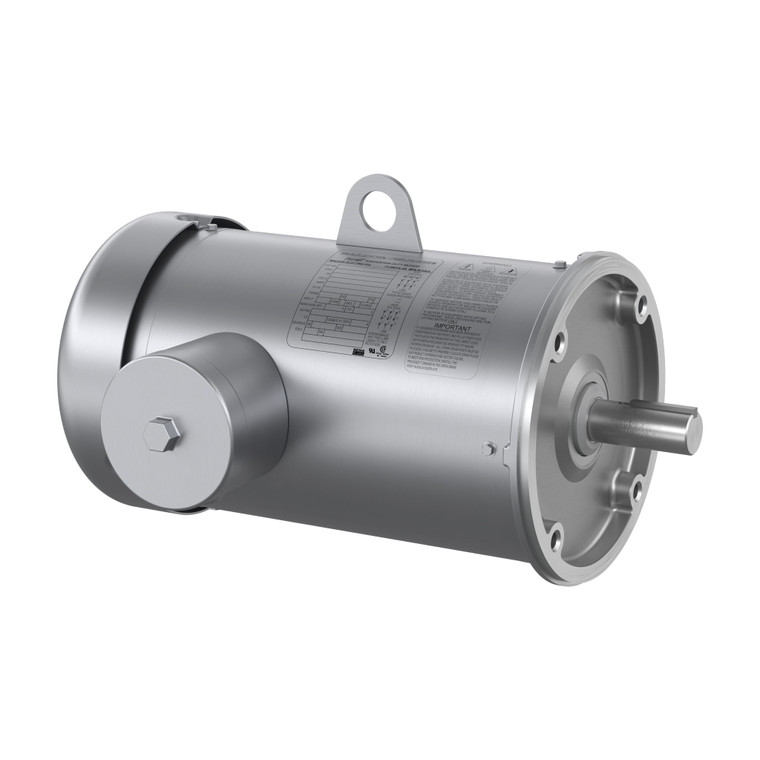

ABB Baldor-Reliance VFSWDM3615T-4E 5 HP 1750 RPM 182TC TEFC Stainless Washdown Motor
ABB Baldor-Reliance
$3,373.59
VFSWDM3615T-4E
Baldor-Reliance 5 HP Stainless Washdown Motor
5HP, 1750RPM, 3PH, 60HZ, 182TC, 3646M, TEFC, F1
5 HP1750 RPM182TC FrameTEFC460 V3-Phase
Specifications
| Catalog Number | VFSWDM3615T-4E |
| Output (HP) | 5 |
| Speed (RPM) | 1750 |
| Synchronous Speed (RPM) | 1800 |
| Number of Poles | 4 |
| Voltage (V @ 60 Hz) | 460 |
| Full Load Amps (A) | 6.5 |
| Phase | 3 |
| Frequency (Hz) | 60.00 |
| Frame | 182TC |
| Frame Material | Stainless Steel |
| Enclosure | TEFC |
| NEMA Nominal Efficiency (%) | 89.5 |
| Service Factor | 1.15 |
| Insulation Class | H |
| Power Factor | 81 |
| Design Code | B |
| KVA Code | J |
| Motor Type | 3646M |
| Motor Letter Type | Three Phase |
| Mounting Arrangement | F1 |
| Shaft Diameter (in) | 1.125 |
| Overall Length (in) | 18.89 |
| Duty Rating | CONT |
| Ambient Temperature (C) | 40 |
| Inverter | Inverter Ready |
| Bearing Grease | Polyrex EM |
| Agency Approvals | NEMA Premium, WEEE, CUR-US-EEV |
Application & Design Notes
The VFSWDM3615T-4E is a Baldor-Reliance stainless washdown motor in a 182TC stainless steel frame with a TEFC enclosure, unpainted finish, and Polyrex EM bearing grease for repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 89.5% nominal efficiency at 1.15 service factor with Class H insulation and Inverter Ready capability. C-face mounting and sealed bearings ease integration on pumps, conveyors, and OEM equipment.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the VFSWDM3615T-4E, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 5 HP
- Speed:
- 1750 RPM
- Poles:
- 4
- Voltage:
- 460 V
- Full Load Amps:
- 6.5 A
- Phase:
- 3
- Frequency:
- 60.00 Hz
- Frame:
- 182TC
- Enclosure:
- TEFC
- Efficiency:
- 89.5%
- Service Factor:
- 1.15
- Insulation Class:
- H
