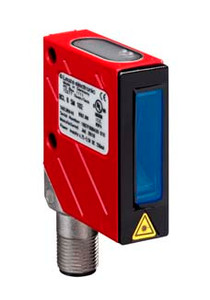

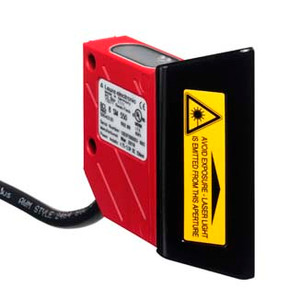

Leuze BCL 8 SN 550 Stationary bar code reader
Leuze
$2,171.00
The Leuze BCL 8 SN 550 is a stationary bar code reader utilizing a 650 nm red laser diode (Class 2 per EN 60825-1 and 21 CFR 1040) with a scanning rate of 500 scans/s via rotating polygon wheel and lateral beam exit. It offers a reading distance of 3595 mm, resolution of 0.1500.500 mm (620 mil), and supports codes including EAN, Code 39/128, 2/5, Codabar, and Pharma Code, with features like autoConfig, autoReflAct, multiple read, and selectable output formats. Electrical specs include RS 232 interface (480057600 Bd), 4.755.5 VDC PELV supply (max 250 mA), M12 5-pin connector or 2 m cable, one switching I/O port (5 VDC input or 530 V/20 mA output), IP67 protection, and compact dimensions of 48 x 40.3 x 15 mm at 70 g.
Documentation
- Technical Datasheet: https://www.leuze.com/fileadmin/user_upload/50105419-datasheet-en.pdf
- Operating Instructions: https://www.leuze.com/fileadmin/downloads/BCL8-operating-instructions-en.pdf
- Dimensioned Drawings: https://www.leuze.com/cad-data/BCL-8-SN-550
- Product Page: https://www.leuze.com/en-us/bcl-8-sn-550/50105419
- Series:
- BCL 8
- Functions:
- Alignment mode,AutoConfig,AutoReflAct,Daisy Chain,I/O,LED indicator,Multiple read,Output format selectable,Reading gate control,Reference code comparison
- Code types, readable:
- 2/5 Interleaved,Codabar,Code 39,Code 93,Code 128,EAN 8/13,EAN 128,EAN Addendum,Pharma Code,Pharmacode (available upon consultation),UPC
- Scanning rate, typical:
- 500 scans/s
- Bar codes per reading gate, max. number:
- 63 Piece(s)
- Reading distance:
- 35 ... 95 mm
- Light source:
- Laser, Red
- Wavelength:
- 655 nm
- Laser class:
- 1, IEC/EN 60825-1:2014
- Modulus size:
- 0.12 ... 0.4 mm
- Reading method:
- Line scanner
- Scanning rate:
- 500 scans/s
- Beam deflection:
- Via rotating polygon wheel
- Light beam exit:
- Lateral with deflecting mirror
- Supply voltage UB:
- 4.75 ... 5.5 V, DC
- Current consumption, max.:
- 250 mA
- Number of inputs/outputs selectable:
- 1 Piece(s)
- Function:
- Process
- Function:
- Service
- Number of connections:
- 1 Piece(s)
- Function:
- Data interface,PWR / SW IN / OUT
- Type of connection:
- Cable
- Cable length:
- 2,000 mm
- Number of conductors:
- 5 -wire
- Design:
- Cubic
- Dimension (W x H x L):
- 58 mm x 75 mm x 17.4 mm
- Housing material:
- Metal
- Metal housing:
- Zinc
- Lens cover material:
- Glass
- Net weight:
- 135 g
- Housing color:
- Silver
- Type of fastening:
- Dovetail grooves,Mounting thread,Through-hole mounting,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 2 Piece(s)
- Ambient temperature, operation:
- 0 ... 40 °C
- Ambient temperature, storage:
- -20 ... 60 °C
- Relative humidity (non-condensing):
- 0 ... 90 %
- Degree of protection:
- IP 67
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2, -3
- Test procedure for shock in accordance with standard:
- IEC 60068-2-27, test Ea
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- US patents:
- US 6,735,007 B
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280102
- ECLASS 8.0:
- 27280102
- ECLASS 9.0:
- 27280102
- ECLASS 10.0:
- 27280102
- ECLASS 11.0:
- 27280102
- ECLASS 12.0:
- 27280102
- ECLASS 13.0:
- 27280102
- ECLASS 14.0:
- 27280102
- ECLASS 15.0:
- 27280102
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002550
- ETIM 7.0:
- EC002550
- ETIM 8.0:
- EC002550
- ETIM 9.0:
- EC002550
- ETIM 10.0:
- EC002550
