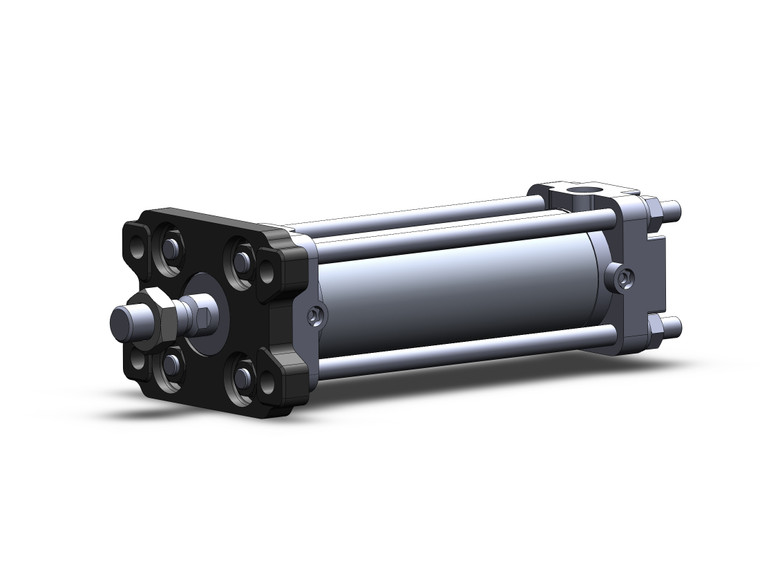

SMC CDA2F40-100Z CA2-Z Air Cylinder, 40mm Bore, 100mm Stroke, Rod Flange

The SMC CDA2F40-100Z is a CA2-Z series double-acting, single-rod tie-rod air cylinder with a 40 mm bore and 100 mm stroke in a rod-side flange mounting. It carries a built-in magnet for auto switch mounting and ships with air cushion on both ends. The CA2-Z generation runs up to 15% lighter than the prior CA2 through a redesigned rod and head cover, with a wider air-cushion adjustment range for finer end-of-stroke control.

Current-production successor to the discontinued CDA2F40-100. Same 40 mm bore, 100 mm stroke, and rod flange mounting - specify the CDA2F40-100Z.

Key features

• Weight reduced by up to 15% versus prior CA2
• Easy air cushion control with wider adjustment range
• Compact and magnetic-field-resistant auto switches can be mounted
• Rod-end and/or pivot brackets available within the part number (no separate bracket order required)
• Built-in magnet (CDA2) - rod-side flange mounting for rigid face fixing

Part number breakdown - CDA2F40-100Z

Specifications

Replacing CDA2F40-100

If you previously specified CDA2F40-100, the CDA2F40-100Z is the direct current-production replacement. Bore (40 mm), stroke (100 mm), and rod-side flange mounting are unchanged; the CA2-Z redesign lightens the cylinder and widens the cushion adjustment range while keeping the same mounting interface. Confirm the cover envelope against the current SMC drawing if panel clearance is tight.

Specifying in a new design

Rod-side flange mounting fixes the cylinder rigidly at the rod end - a good default for pushing/pressing against a fixed frame. For swinging loads, choose the double clevis (D) version instead. Need position sensing shipped mounted? Add a switch model: -A53 for reed switches, -J59L for solid state 2-wire with 3 m leads. See the related CA2-Z configurations below.

Maintenance parts

ø40 CA2-Z seal kit: CA2-40Z-PS. Flange assembly: CA2-F04. Grease pack: GR-S-010. Rod end nut: NT-04.

FAQ

What replaced the SMC CDA2F40-100?
The CDA2F40-100Z - the same 40 mm bore, 100 mm stroke, rod-flange cylinder in SMC's current CA2-Z design.

Can I add auto switches to this cylinder?
Yes. It has a built-in magnet. Order switches separately, or specify a switch suffix such as -A53 (reed) or -J59L (solid state).

What is the port size?
Rc 1/4 standard. NPT (suffix TN) and G (suffix TF) thread options are available.
