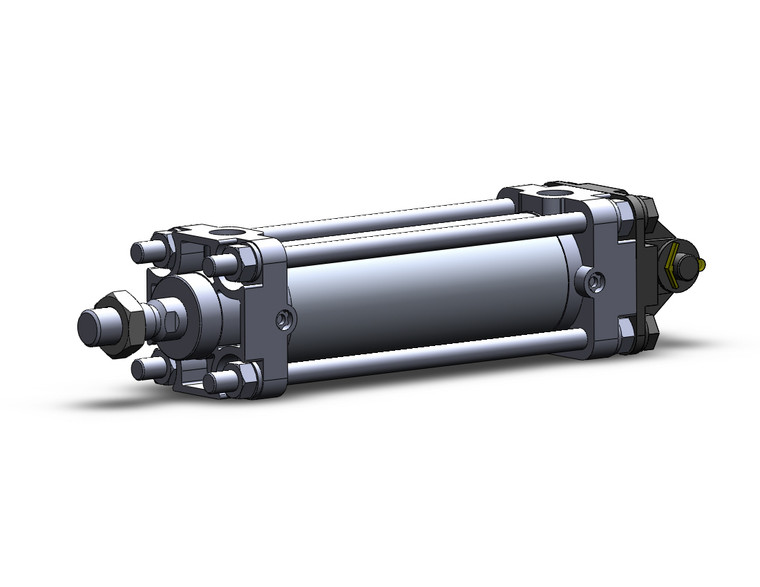

SMC CDA2D40-100Z CA2-Z Air Cylinder, 40mm Bore, 100mm Stroke, Double Clevis
SMC
$118.00
The SMC CDA2D40-100Z is a CA2-Z series double-acting, single-rod tie-rod air cylinder with a 40 mm bore and 100 mm stroke in a double clevis mounting. It carries a built-in magnet for auto switch mounting and ships with SMC's standard air cushion on both ends. The CA2-Z generation runs up to 15% lighter than the prior CA2 through a redesigned rod and head cover, with a wider air-cushion adjustment range for finer end-of-stroke control.
Current-production successor to the discontinued CDA2D40-100. Same 40 mm bore, 100 mm stroke, and double clevis mounting - specify the CDA2D40-100Z.
Key features
- Weight reduced by up to 15% versus prior CA2
- Easy air cushion control with wider adjustment range
- Compact and magnetic-field-resistant auto switches can be mounted
- Available with rod-end and/or pivot brackets built into the part number (no separate bracket order required)
- Built-in magnet (CDA2) - double clevis mounting for pivoting/oscillating loads
Part number breakdown - CDA2D40-100Z
| Segment | Meaning |
|---|---|
| CDA2 | CA2 air cylinder with built-in magnet (auto switch capable) |
| D | Double clevis mounting style |
| 40 | 40 mm bore |
| 100 | 100 mm stroke |
| Z | CA2-Z current-production (weight-reduced) design |
Specifications
| Action | Double acting, single rod |
| Bore / Stroke | 40 mm / 100 mm |
| Mounting | Double clevis |
| Max. operating pressure | 1.0 MPa (145 psi) |
| Min. operating pressure | 0.05 MPa (7 psi) |
| Proof pressure | 1.5 MPa |
| Ambient / fluid temp. | -10 to 60°C with auto switch (no freezing) |
| Piston speed | 50 to 1000 mm/s |
| Cushion | Air cushion, both ends |
| Port size | Rc 1/4 |
| Auto switch | Built-in magnet; switches ordered separately |
| Compliance | RoHS |
Replacing CDA2D40-100
If you previously specified CDA2D40-100, the CDA2D40-100Z is the direct current-production replacement. Bore (40 mm), stroke (100 mm), and double clevis mounting are unchanged; the CA2-Z redesign lightens the cylinder and widens the cushion adjustment range while keeping the same mounting interface. For pivoting installations with tight clearance, confirm the rod-cover and head-cover envelope against the current SMC drawing before finalizing.
Specifying in a new design
Double clevis mounting suits loads that swing or pivot through the stroke. If your load travels in a fixed linear path, a rod-flange (F), foot (L), or basic (B) mount will locate the cylinder more rigidly - see the matching CA2-Z configurations. Add a switch model to the part number (for example -M9BL for two solid state 2-wire switches with 3 m leads) to ship with position sensing pre-mounted.
Maintenance parts
ø40 CA2-Z seal kit: CA2-40Z-PS. Grease pack: GR-S-010. Rod end nut: NT-04. Double clevis type ships with clevis pin, flat washer, and cotter pin.
FAQ
What replaced the SMC CDA2D40-100?
The CDA2D40-100Z. It is the same 40 mm bore, 100 mm stroke, double clevis cylinder in SMC's current weight-reduced CA2-Z design.
Is CDA2D40-100Z interchangeable with CDA2D40-100?
Yes - same bore, stroke, and mounting. The Z design changes cover geometry to cut weight, so confirm the envelope on tight installs.
Does it include auto switches?
It has a built-in magnet but no switches in this part number. Order switches separately, or specify a switch suffix (for example CDA2D40-100Z-M9BL).
Automation Distribution is an authorized SMC distributor. For sizing help, bracket selection, or auto switch pairing on the CA2-Z series, contact our technical team.
- Series:
- CA2-Z
- Part Number:
- CDA2D40-100Z
- Product Type:
- Tie-Rod Air Cylinder (Double Acting, Single Rod)
- Bore Size:
- 40 mm
- Cylinder Stroke:
- 100 mm
- Mounting Style:
- Double Clevis
- Port Thread Type:
- Rc 1/4
- Tube Material:
- Aluminum Tube
- Cushion:
- Air Cushion (both ends)
- Auto Switch:
- Built-in magnet (switches ordered separately)
