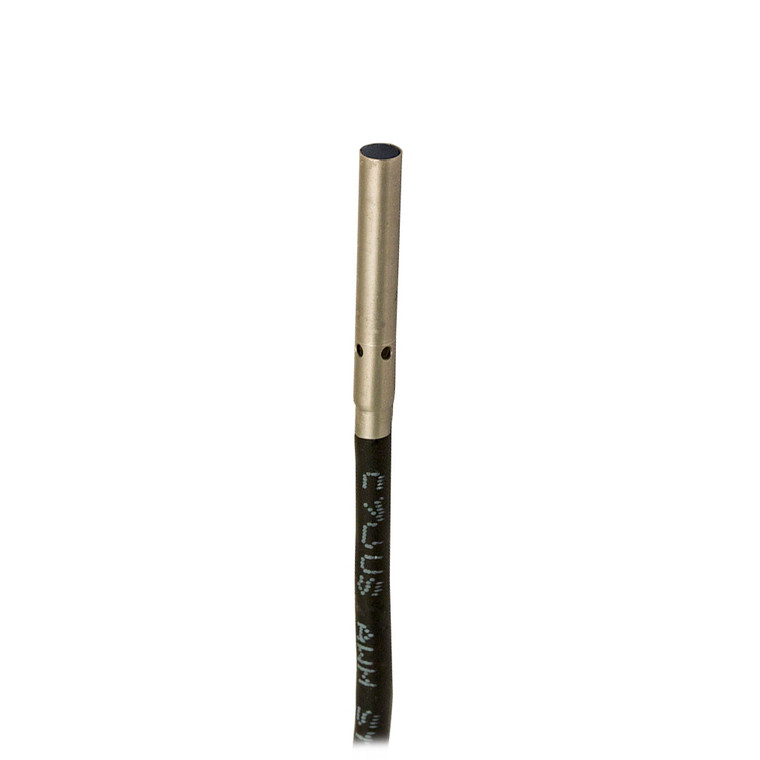

Datasensing AA1/AN-1A Sensors
Datasensing
$95.16
The Datasensing AA1/AN-1A Sensors are designed for precision and reliability in industrial applications. These ultraminiaturized cylindrical inductive sensors feature a compact Ø3mm design, making them ideal for tight spaces. With an IP67 protection rating, they are built to withstand harsh environments. The sensors offer a nominal sensing distance of 0.6mm and an operating distance of 0 to 0.48mm, with a standard target size of 3x3mm FE360. They are equipped with a yellow LED indicator for output state and provide a switching frequency of 3kHz. The sensors operate on a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 100mA. They feature short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The housing is made from AISI 303 stainless steel, and the active head is constructed from PBT, offering robustness and longevity. These sensors are CE and UL approved, with EMC compatibility according to IEC 60947-5-2 standards, and are designed to handle shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. With a 2m PUR cable connection, they are easy to integrate into existing systems. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are a reliable choice for various industrial applications.
- Nominal sensing distance:
- 0,6mm
- Operanting distance:
- 0 0,48mm
- Standard target:
- 3x3mm FE360
- Correction Factor:
- copper: 0,32 ± 10% / aluminium: 0,24 ± 10% / brass: 0,39 ± 10% / stainless steel: 0,57 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- Ø3 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI 303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- Ø3
- Approvals:
- CE UL
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
