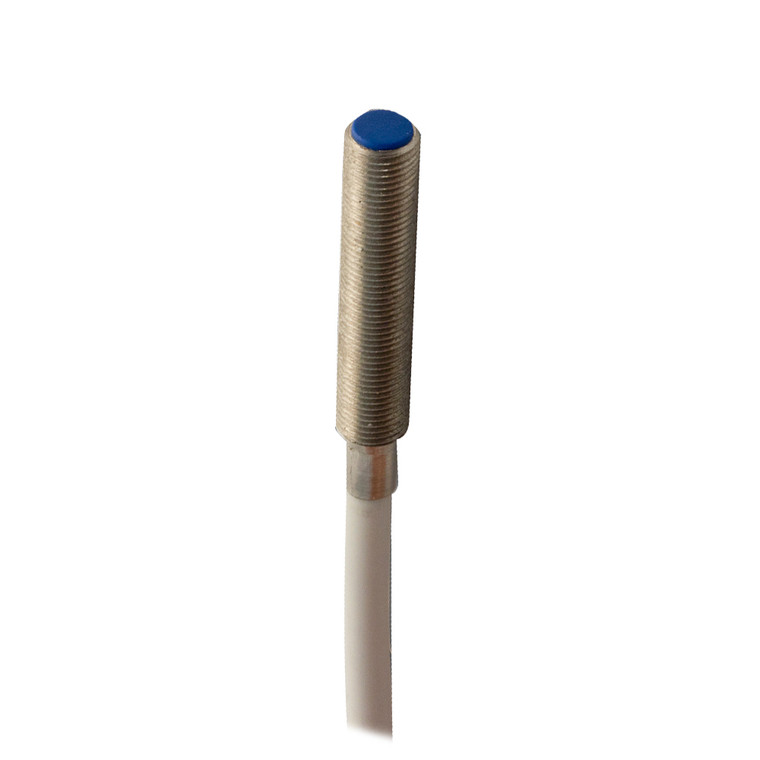

Datasensing AD1/AP-1A Sensors

The Datasensing AD1/AP-1A Sensors are designed for precision and reliability in industrial applications. These sensors feature an extremely compact design with dimensions of M5 x 30 mm for cable and 38 mm for plug length, making them ideal for tight spaces. They operate on a voltage range of 10 to 30 Vdc and can handle an output current of up to 100 mA. The sensors are equipped with a yellow LED output indicator for easy status monitoring and are fully protected against electrical damages, including short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. Constructed with a robust AISI303 stainless steel housing, these sensors are built to withstand harsh environments, offering a high degree of protection with an IP67 rating. The active head is made from durable PBT material, and the sensors come with a 2-meter PVC cable for flexible installation. With a nominal sensing distance of 0.8mm and an operating distance of 0 to 0.65mm, they are suitable for detecting standard targets of 5x5mm FE360. The sensors also feature a high switching frequency of 5kHz and a repeat accuracy of less than 5%, ensuring precise and consistent performance. Additional features include a low no-load supply current of ? 10mA, a load current of ? 100mA, and a leakage current of ? 10?A. The output voltage drop is minimal at ? 1.5V @100mA, and the sensors can handle a maximum ripple content of ? 10%. They are designed for shielded mounting and come with supplied accessories, including two M5x0.5 nuts. The sensors are CE and cULus approved, ensuring compliance with international standards, and are compatible with EMC standard IEC 60947-5-2. They are also tested for shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27 standards, making them a reliable choice for demanding industrial environments.
