Datasensing AD1/CN-3A Sensors
Datasensing
$75.00

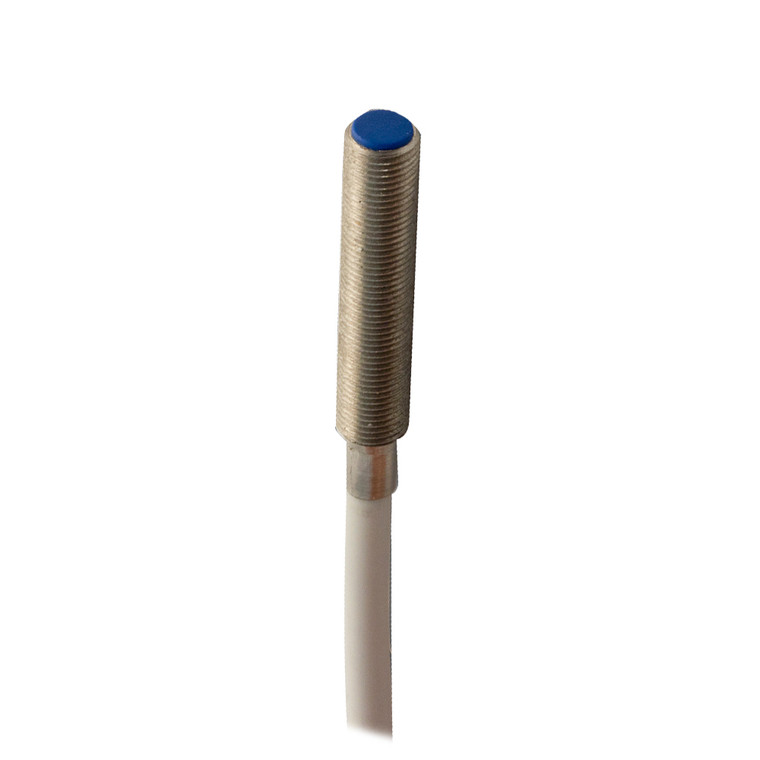

The Datasensing AD1/CN-3A Sensors are compact inductive sensors designed for precision and reliability. With a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm, these sensors are ideal for detecting standard targets of 5x5mm FE360. The sensors feature a robust stainless steel housing and are equipped with a 2m PVC cable for easy installation. They operate on a voltage range of 10 to 30 Vdc and support a load current of up to 100mA, with a low no-load supply current of ? 10mA.
The AD1/CN-3A Sensors are designed with a yellow LED output indicator for easy status monitoring and are fully protected against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors are shielded for mounting and have a high switching frequency of 5kHz, ensuring quick and accurate responses.
With a durable AISI303 stainless steel housing and PBT active head material, these sensors are built to withstand harsh environments, offering an operating temperature range of -25°C to +70°C and a degree of protection rated at IP67. The sensors are also compliant with CE and cULus approvals and meet EMC compatibility standards IEC 60947-5-2.
Supplied with two M5x0.5 nuts for secure mounting, the Datasensing AD1/CN-3A Sensors are an excellent choice for applications requiring reliable proximity detection in compact spaces.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 5x5mm FE360
- Correction Factor:
- copper: 0,29 ± 10% / aluminium: 0,23 ± 10% / brass: 0,31 ± 10% / stainless steel: 0,66 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M5 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 2Nm
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- M5
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M5x0.5
- Mechanical Protection:
- IP67
