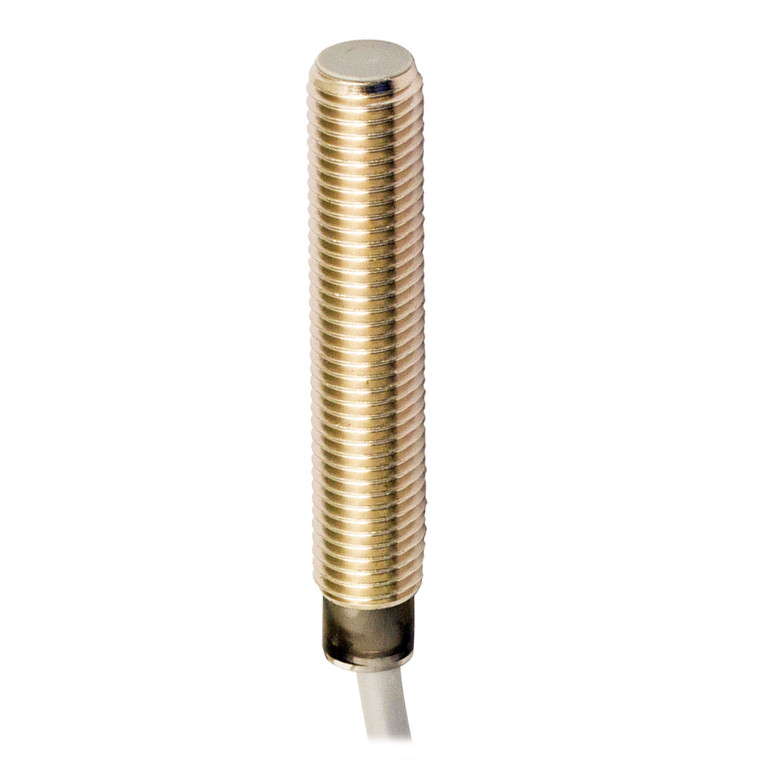

Datasensing AE1/CN-3A Sensors
Datasensing
$48.78
The Datasensing AE1/CN-3A Sensors are designed for precision and reliability in industrial applications. Featuring an extremely reduced measure, these sensors come with a robust metal housing and a 360° visible LED status indicator for easy monitoring. With an IP67 housing protection, they are built to withstand harsh environments, and ATEX models are available upon request for added safety in explosive atmospheres. These sensors offer complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
Available in both standard and long-distance models, the AE1/CN-3A Sensors are equipped with a standard flush mount M8 design, ensuring easy installation. They operate with a nominal sensing distance of 2mm and an operating distance of 0
1.62mm, making them ideal for proximity functions. The sensors feature an NPN output type with a normally closed (NC) output function, and they support a switching frequency of up to 5kHz.
Constructed with nickel-plated brass housing and a PBT active head material, these sensors are durable and reliable. They operate efficiently within a temperature range of -25°C to +70°C and are compatible with various materials, offering correction factors for copper, aluminum, brass, and stainless steel. The sensors are CE and UR approved, ensuring compliance with international standards, and they come with supplied accessories, including two M8x1 nuts for secure mounting.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,35 / aluminium: 0,43 / brass: 0,52 / stainless steel: 0,78
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 45g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M8x1
- Mechanical Protection:
- IP67
