Datasensing AK6/AP-3H Sensors
Datasensing
$61.41

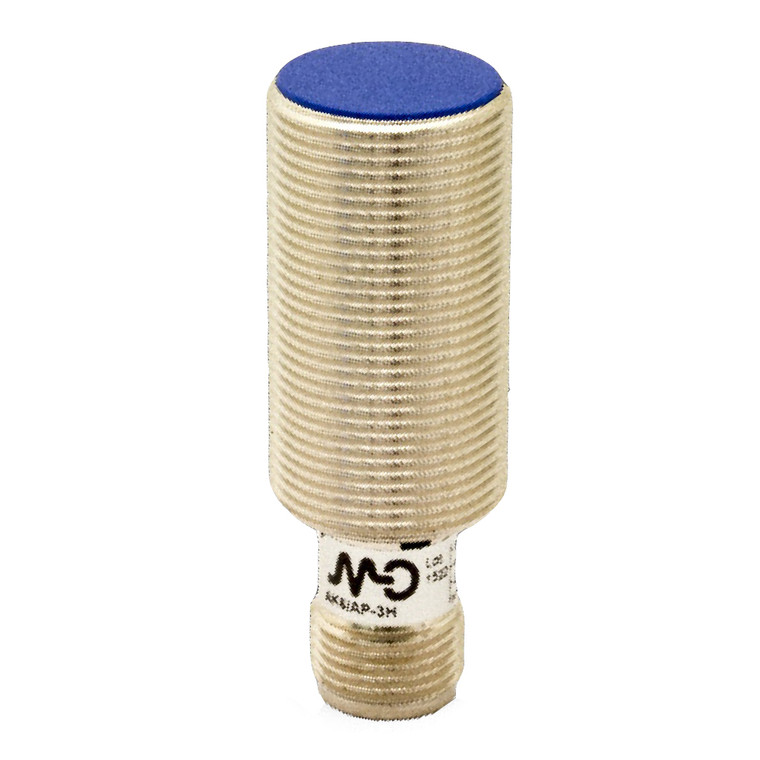

The Datasensing AK6/AP-3H Sensors are high-performance inductive sensors designed for a variety of applications. With a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm, these sensors are ideal for precise proximity detection. They feature a standard target size of 24x24mm FE360 and offer correction factors for different materials, including copper, aluminum, brass, and stainless steel. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring reliable performance with a switching frequency of 2.5kHz.
These sensors operate within a voltage range of 10 to 30Vdc and have a no-load supply current of ? 10mA. They can handle a load current of up to 400mA, with a leakage current of ? 10?A and an output voltage drop of ? 1.5V at 400mA. The sensors are designed with short-circuit, reverse polarity, and impulsive overvoltage protection, as well as protection against inductive loads.
Constructed with a nickel-plated brass housing and a PBT active head, the sensors are robust and durable, with an IP67 degree of protection. They are shielded for mounting and come with M12 plug connections. The sensors are capable of withstanding shocks and vibrations as per IEC standards and are approved with CE and UR certifications. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are supplied with two M18x1 nuts for easy installation.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,39 / aluminium: 0,45 / brass: 0,51 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 2,5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 55g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
