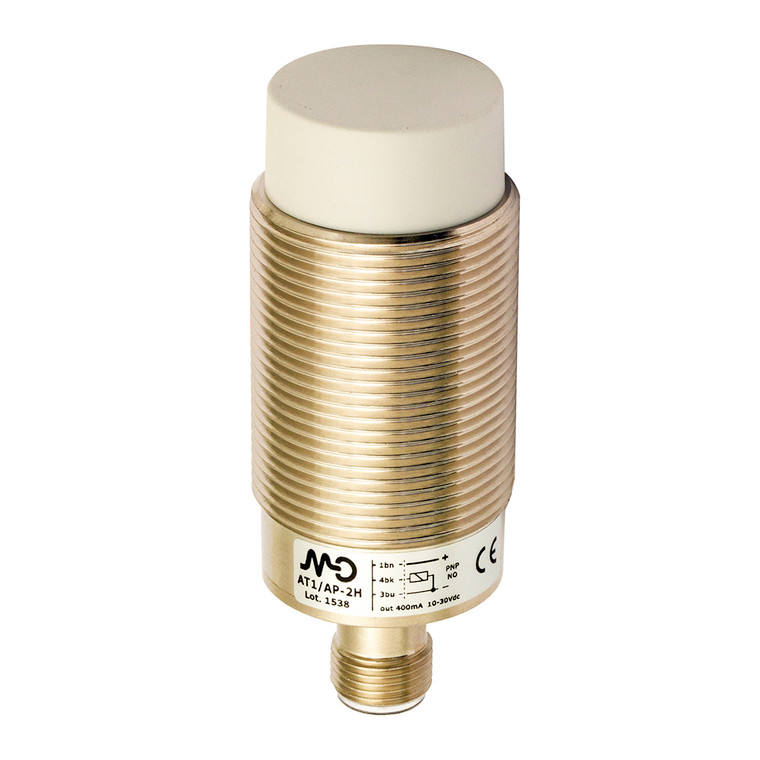

Datasensing AT1/AP-4H Sensors

The Datasensing AT1/AP-4H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. With a nominal sensing distance of 20mm and an operating range of 0 to 16.2mm, these sensors are ideal for detecting standard targets of 60x60mm FE360. The sensors feature a PNP output type with a normally open (NO) function, ensuring efficient proximity detection. Constructed with a robust nickel-plated brass housing and an active head made of PBT, the AT1/AP-4H sensors are built to withstand harsh environments, offering complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors are unshielded and designed for M30 standard no-flush mounting, with a tightening torque of 50Nm. These sensors are equipped with a yellow LED indicator for output state, providing clear visual feedback. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current of ? 400mA. The sensors also feature a high switching frequency of 200Hz, making them suitable for fast-paced operations. The AT1/AP-4H sensors are designed to meet rigorous standards, with CE and UR approvals, and EMC compatibility according to IEC 60947-5-2. They are also resistant to shocks and vibrations, complying with IEC 60068-2-6 and IEC 60068-2-27 standards. With an IP67 degree of protection, these sensors are dust-tight and can withstand temporary immersion in water. Supplied with two M30x1.5 nuts, the sensors are easy to install and maintain. They operate efficiently in temperatures ranging from -25°C to +70°C, making them versatile for various industrial settings. Whether you need standard, long-distance, or ATEX category 3 models, the Datasensing AT1/AP-4H Sensors offer reliable performance and durability for your sensing needs.
