Datasensing AT1/CN-4H Sensors
Datasensing
$74.20

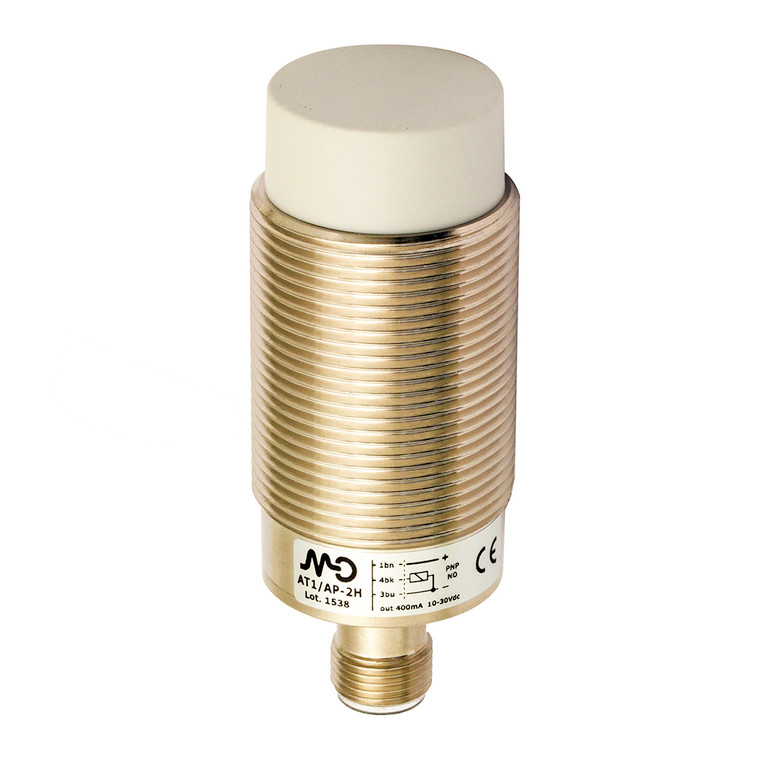

The Datasensing AT1/CN-4H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring an M30 unshielded design with NC/NPN output, these sensors offer a nominal sensing distance of 20mm and an operating range of 0 to 16.2mm. They are equipped with a standard target size of 60x60mm FE360 and provide a correction factor for different materials, including copper, aluminum, brass, and stainless steel.
These sensors are built to withstand challenging environments, with complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The robust nickel-plated brass housing ensures durability, while the IP67 rating guarantees resistance to dust and water ingress. The sensors are also designed to handle shocks and vibrations, complying with IEC standards.
With a switching frequency of 200Hz and an operating voltage range of 10 to 30Vdc, the AT1/CN-4H sensors are versatile and efficient. They feature a yellow LED indicator for output state, ensuring easy monitoring. The sensors come with an M12 plug connection and are supplied with two M30x1.5 nuts for secure mounting. Ideal for proximity functions, these sensors are suitable for a wide range of applications, offering reliable performance even in extreme temperatures from -25°C to +70°C.
- Nominal sensing distance:
- 20mm
- Operanting distance:
- 0 16,2mm
- Standard target:
- 60x60mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 150g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
