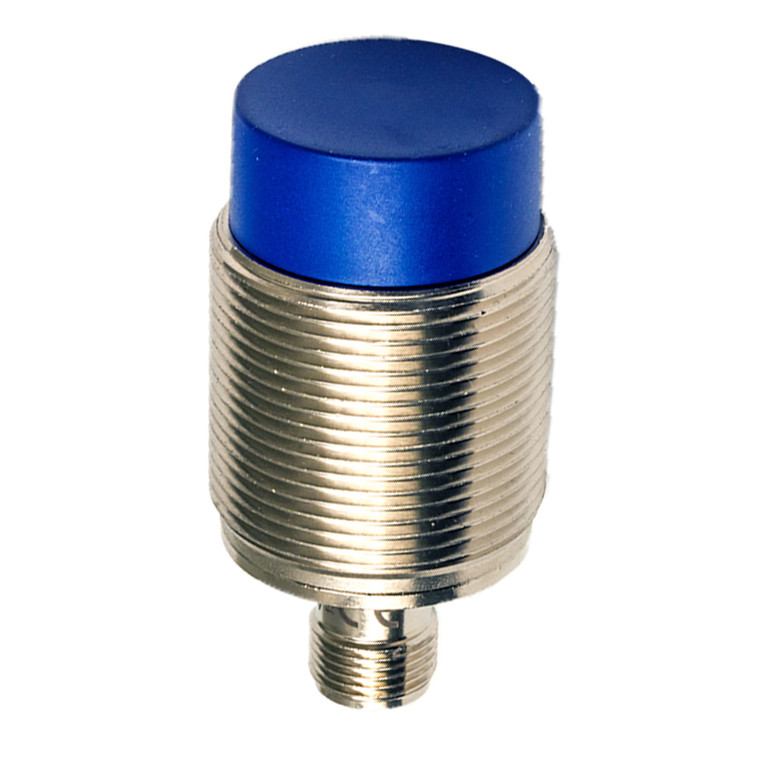

Datasensing AT6/AN-4H Sensors

The Datasensing AT6/AN-4H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a robust M30 unshielded short housing, these sensors are equipped with a NO/NPN output and an M12 connection for seamless integration. With a nominal sensing distance of 20mm and an operating range of 0 to 16.2mm, they are ideal for various industrial applications. The sensors offer a wide range of models, including standard and long-distance options, with 2, 3, and 4-wire configurations. ATEX models, category 3, are available upon request for environments requiring explosion protection. These sensors are engineered with complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They also feature a complementary output (NO + NC) and a high switching frequency of 200Hz. The sensors are built to withstand harsh conditions, with a durable nickel-plated brass housing and an IP67 degree of protection, ensuring resistance to dust and water ingress. Additional features include a yellow LED indicator for output state, a time delay before availability of ?100ms, and a low output voltage drop of ?1V at 400mA. The sensors are designed for easy installation with an M12 plug connection and come with supplied accessories, including two M30x1.5 nuts. They are CE and cULus approved, with EMC compatibility per IEC 60947-5-2 standards, and are tested for vibration and shock resistance according to IEC 60068-2-6 and IEC 60068-2-27, respectively. Operating efficiently in temperatures ranging from -25°C to +70°C, these sensors are a reliable choice for demanding industrial environments.
