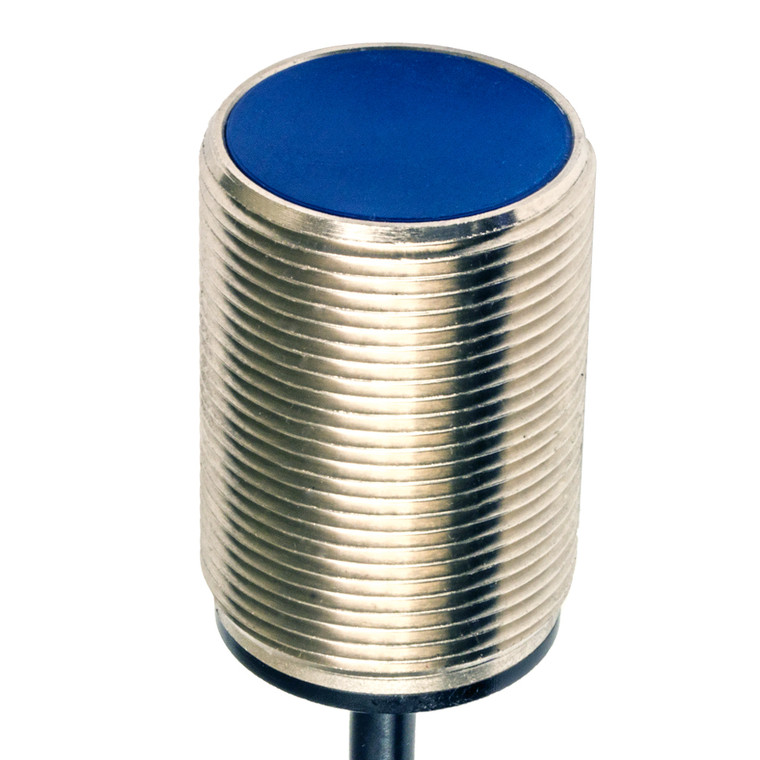

Datasensing AT6/AP-3A Sensors
Datasensing
$70.68
The Datasensing AT6/AP-3A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M30 shielded short housing, these sensors offer a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient signal processing.
Constructed with durable nickel-plated brass housing and a PBT active head, the AT6/AP-3A sensors are built to withstand harsh environments, with an operating temperature range of -25°C to +70°C and a degree of protection rated at IP67. The sensors are designed with complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection.
The sensors come with a 2-meter PVC cable for easy installation and connectivity. They feature a yellow LED indicator for output state visibility and have a switching frequency of 200Hz. With a load current capacity of up to 400mA and a low output voltage drop of ? 1V at 400mA, these sensors ensure reliable performance.
The AT6/AP-3A sensors are compliant with CE and cULus approvals and meet EMC compatibility standards (IEC 60947-5-2). They are also designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M30x1.5 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 short case flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 165g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
