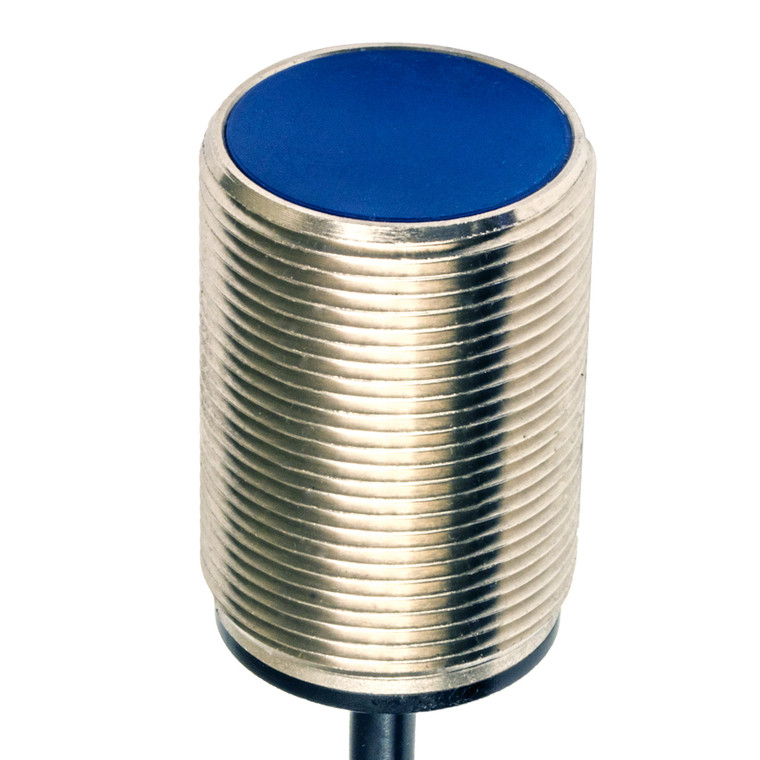

Datasensing AT6/BN-3A Sensors
Datasensing
$78.09
The Datasensing AT6/BN-3A Inductive Sensor is designed for precision and reliability in industrial applications. Featuring a compact M30 shielded short housing, this sensor offers both Normally Open (NO) and Normally Closed (NC) output functions with an NPN output type. It comes equipped with a 2-meter axial PVC cable for easy installation. The sensor boasts a nominal sensing distance of 15mm and operates effectively within a range of 0 to 12.1mm, making it suitable for various proximity detection tasks.
Constructed with a durable nickel-plated brass housing and a PBT active head, the AT6/BN-3A ensures long-lasting performance even in challenging environments. It is equipped with comprehensive protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, safeguarding against electrical damages. The sensor operates within a voltage range of 10 to 30Vdc, with a maximum load current of 400mA and a switching frequency of 200Hz.
The AT6/BN-3A is designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and an IP67 degree of protection against dust and water ingress. It is also compliant with CE and cULus approvals, ensuring adherence to international safety standards. The sensor's mechanical robustness is further enhanced by its resistance to shocks and vibrations, as per IEC standards.
Ideal for applications requiring precise proximity detection, the Datasensing AT6/BN-3A Inductive Sensor is a versatile and reliable choice, complete with supplied accessories including two M30x1.5 nuts for secure mounting.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 short case flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO + NC
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 165g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
