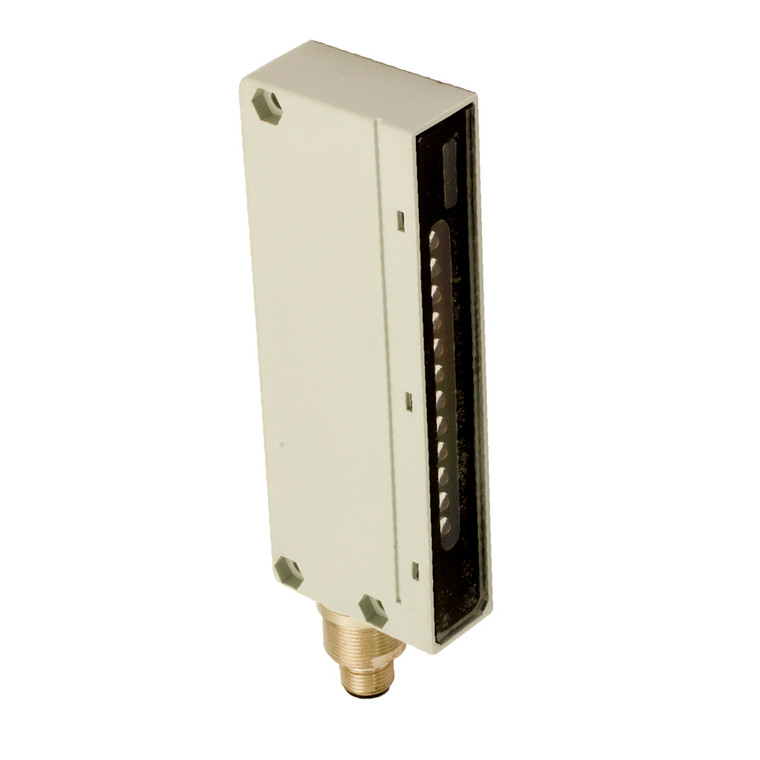

Datasensing BX80B/1N-0H Sensors
Datasensing
$487.59
The Datasensing BX80B/1N-0H Sensors are designed for precision and reliability in demanding environments. This area sensor receiver features a crossed beam with a nominal sensing distance ranging from 0.3 to 2 meters, ensuring accurate detection with a response time of just 10ms. The sensor operates on a 12 to 24 VDC power supply and includes NPN NO/NC output functions, making it versatile for various applications.
With a controlled height of 70mm and a beam spacing of 6mm, it can detect objects as small as 5mm. The robust cubic housing, made from PBT with a metallic enclosure, provides durability and protection against electrical damages, while the IP67 rating ensures complete protection against dust and water ingress.
The sensor is equipped with LED indicators for power, alignment, and output state, and features sensitivity adjustment for optimal performance. It also includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, ensuring reliable operation even in challenging conditions.
The compact design, with dimensions of 44mm x 120mm x 20mm and a weight of 260 to 300g, allows for easy installation using the M12 plug connection. The sensor is supplied with two M18x1 nuts, an adjustment key, and a 90 angled bracket for convenient setup. It is approved by CE and cULus, and complies with EMC compatibility standards IEC 60947-5-2, making it a dependable choice for industrial automation and safety applications.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 12
- Function Principle:
- Receiver
- Output type:
- NPN
- Output Function:
- NO/NC
- Response time:
- 10ms
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10µA
- Output voltage drop:
- ?1.2V Iload =100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON), red (alignment), yellow (output state)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP67
