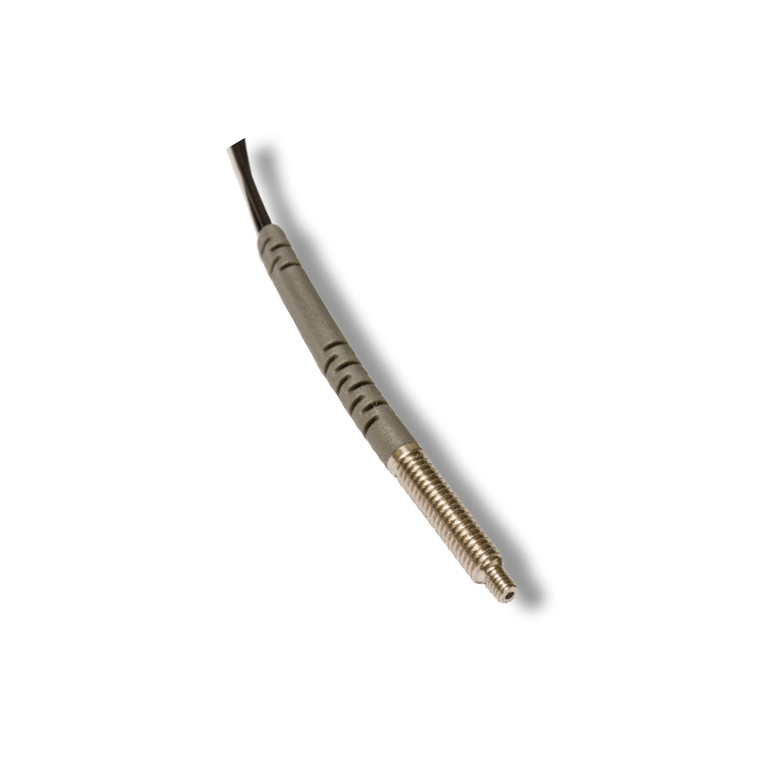

Datasensing CF/CA-M4-205 Sensors
Datasensing
$84.76
The Datasensing CF/CA-M4-205 Sensors are designed with precision and versatility in mind, featuring a plastic optical fibre with a coaxial, axial configuration. With a length of 2 meters and a core diameter of 0.5 mm, these sensors are ideal for a variety of applications. The ultra-slim design is perfect for detecting small objects, while the long-distance capabilities and spiral tube options enhance handling flexibility. The sensors are equipped with a wide range of flexible fibre heads, complete with protective sleeves, and are compatible with cutting fibre units. They boast an IP67 protection degree, ensuring durability in challenging environments. The CF/CA-M4-205 Sensors are connectable with the SSF, FS1, FX3, and FX4 series, offering distances of up to 200 mm with FX4. Operating efficiently in temperatures ranging from -55°C to +70°C, these sensors are constructed with a stainless steel head and PE plastic optical fibre material, ensuring robust performance and reliability. Approved with CE certification, they are a dependable choice for your sensing needs.
- Distance with SSF:
- ---
- Distance with FS1:
- ---
- Distance with FX3:
- 120 mm
- Distance with FX4:
- 200 mm
- Distance with F1R:
- 80 mm
- Distance with FY2:
- 45 mm
- Distance with FY3:
- 90 mm
- Function Principle:
- Coaxial
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- M4
- Optical fibre material:
- PE, plastic
- Head material:
- stainless steel
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
