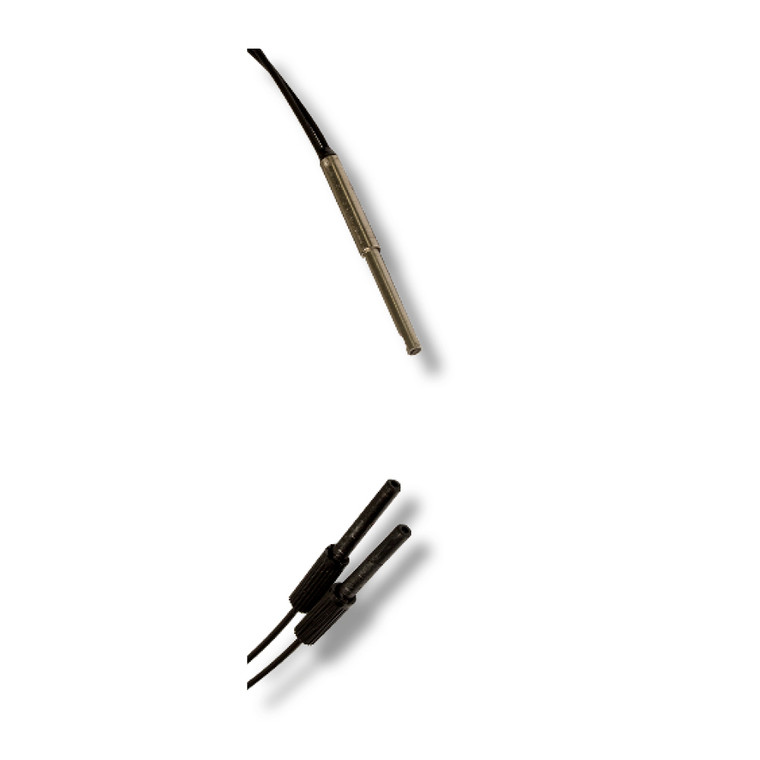

Datasensing CF/DR-F3-205 Sensors
Datasensing
$211.90
The Datasensing CF/DR-F3-205 Sensors are designed with precision and versatility in mind, featuring a plastic optical fibre with a diffuse function principle and a 90° optic position. With a diameter of 3 mm and a length of 2 meters, these sensors are cuttable to suit various applications. The core diameter of 0.5 mm ensures accurate sensing capabilities.
These sensors offer a wide range of models, including ultra-slim options for detecting small objects and long-distance sensing, as well as spiral tubes for flexible handling. The fibre heads are available in various flexible designs, complete with protective sleeves, and the cutting fibre units provide additional customization.
The CF/DR-F3-205 Sensors are compatible with the SSF, FS1, FX3, and FX4 series, with specific distance capabilities: 38 mm with FX3, 45 mm with FX4, 15 mm with F1R, 10 mm with FY2, and 11 mm with FY3. They are built to withstand harsh environments, boasting an IP67 protection degree and an operating temperature range from -40°C to +70°C for fixed installations. The optical fibre is made from durable PE plastic, while the head is constructed from nickel-plated brass, ensuring long-lasting performance.
Approved with CE certification, these sensors are ideal for a variety of industrial applications, providing reliable and efficient optical sensing solutions.
- Distance with SSF:
- ---
- Distance with FS1:
- ---
- Distance with FX3:
- 38 mm
- Distance with FX4:
- 45 mm
- Distance with F1R:
- 15 mm
- Distance with FY2:
- 10 mm
- Distance with FY3:
- 11 mm
- Function Principle:
- Diffusione diretta
- Description:
- Plastic optical fibres
- Optic position:
- 90°
- Fibre lengh (m):
- 2
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- Ø2
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
