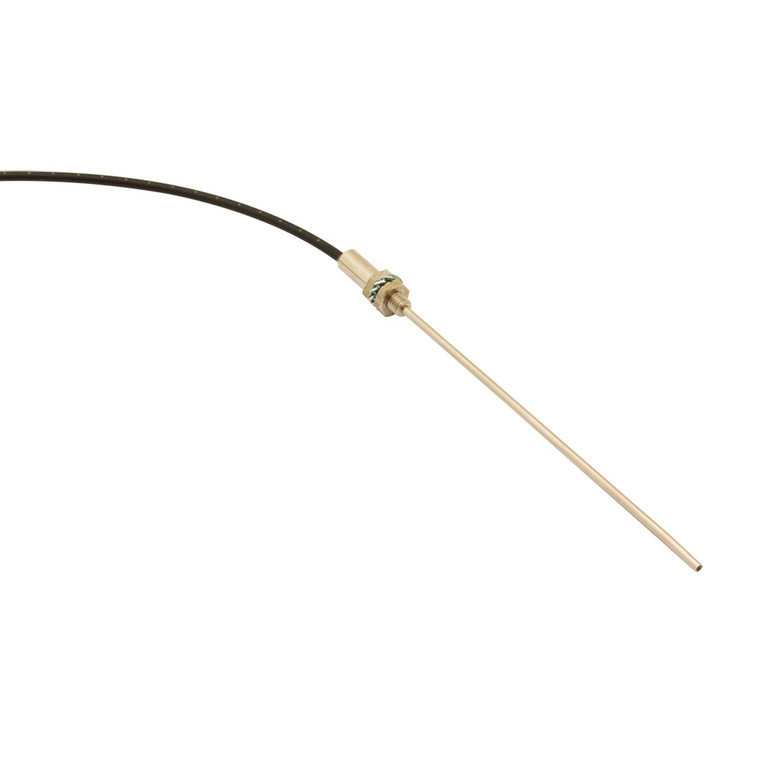

Datasensing CF/RB4-10 Sensors
Datasensing
$107.98
The Datasensing CF/RB4-10 Sensors are designed for precision and versatility, featuring cutable optical fibre emitters and receivers with a length of 1 meter. These sensors are ideal for a variety of applications, offering a wide range of models including ultra-slim designs for detecting small objects, options for long-distance sensing, and spiral tubes for easy handling. The sensors are equipped with flexible fibre heads that come with a protective sleeve, and a selection of cutting fibre units to suit different needs. With an IP67 protection degree, these sensors are built to withstand harsh environments. They are compatible with the SSF, FS1, FX3, and FX4 series, providing varying sensing distances from 120 mm to 900 mm. The optical fibres are made from durable PE plastic, with a core diameter of 1 mm, and the head is constructed from nickel-plated brass for enhanced durability. Operating efficiently in temperatures ranging from -40°C to +55°C, these sensors are CE approved and require the AF/ER9 accessory, which is sold separately.
- Distance with SSF:
- 120 mm
- Distance with FS1:
- 120 mm
- Distance with FX3:
- 600 mm
- Distance with FX4:
- 900 mm
- Distance with F1R:
- 410 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- Fibre lengh (m):
- 1
- Ø optical fibre core:
- 1 mm
- Head shape:
- M4 with sleeve
- Optical fibre material:
- PE, plastic
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/ER9
- Mechanical Protection:
- IP67
