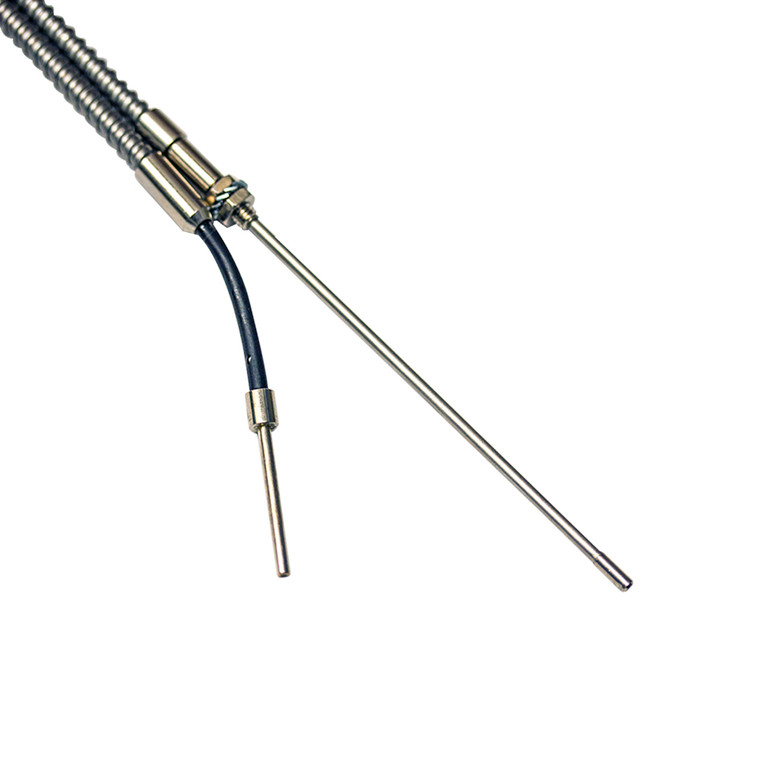

Datasensing CV/RB4-10 Sensors
Datasensing
$531.31
The Datasensing CV/RB4-10 Sensors are designed with an optical fibre E/R glass sleeve, offering exceptional performance in demanding environments. These sensors feature models with flexible fibre heads encased in a durable sleeve, ensuring reliable operation across a wide range of applications. With a comprehensive selection of accessories from the AF series, these sensors provide versatility and adaptability to meet various needs.
Engineered with an IP67 protection degree, the CV/RB4-10 Sensors are built to withstand harsh conditions, making them suitable for both indoor and outdoor use. They are compatible with the SSF, FS1, FX3, and FX4 series, offering varying detection distances from 90 mm to 900 mm, depending on the series used. The sensors operate on the principle of an emitter and receiver, utilizing glass fibres that can withstand temperatures up to 200°C.
The optical fibres have an axial position and a core diameter of 1 mm, with a fibre length of 1 meter. The head is shaped in an M4 configuration with a sleeve, constructed from nickel-plated brass for enhanced durability. The optical fibre material comprises glass, ETM, and inox, ensuring high performance and longevity.
These sensors are approved with CE certification, guaranteeing compliance with international standards. With an operating temperature range from -40°C to +200°C, the Datasensing CV/RB4-10 Sensors are ideal for a variety of industrial applications, providing reliable and precise sensing solutions.
- Distance with SSF:
- 90 mm
- Distance with FS1:
- 90 mm
- Distance with FX3:
- 600 mm
- Distance with FX4:
- 900 mm
- Distance with F1R:
- 410 mm
- Function Principle:
- Emitter + Receiver
- Description:
- Glass fibres up to 200°C
- Optic position:
- Axial
- Fibre lengh (m):
- 1
- Ø optical fibre core:
- 1 mm
- Head shape:
- M4 with sleeve
- Optical fibre material:
- glass, ETM, inox
- Head material:
- nickel-plated brass
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
