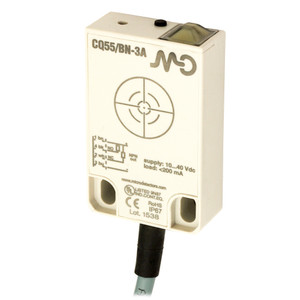

Datasensing CQ55/BN-3A Sensors
Datasensing
$161.60
The Datasensing CQ55/BN-3A Sensors are designed for precision and reliability in various industrial applications. These capacitive sensors feature a cubic plastic housing made from durable polycarbonate, ensuring robust performance in challenging environments. With an adjustable sensitivity range of 4 to 25mm, these sensors offer flexibility to meet specific detection needs. The NPN output type with NO + NC functions provides versatile connectivity options, while the 2-meter PVC cable allows for easy installation.
Operating on a DC supply voltage of 10 to 40Vdc, the CQ55/BN-3A sensors are equipped with essential protective features, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors boast a high switching frequency of 50Hz and a low no-load supply current of ? 10mA, making them energy-efficient. The yellow LED indicator provides a clear visual signal when an object is detected.
These sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +80°C and a storage temperature range of -40°C to +85°C. The IP67 degree of protection ensures resistance to dust and water ingress, making them suitable for both indoor and outdoor use. The compact dimensions of 55x35x15mm and a weight of 150g allow for easy integration into various systems. Additionally, the sensors come with a screwdriver for convenient installation and adjustments. Certified with CE and cULus approvals, the Datasensing CQ55/BN-3A Sensors meet international standards for safety and performance.
- Nominal sensing distance:
- 4 25mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- NPN
- Output Function:
- NO + NC
- Switching frequency:
- 50Hz
- Operating Voltage:
- 10...40Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ?200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- 2,5Vmax @IL=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow LED (object detected)
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Shielded/Unshielded
- Weight:
- 150g
- Housing Material:
- PC
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Storage temperature:
- -40°C +85°C
- Diameter/Dimension:
- 55x35x15mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- screw driver
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
