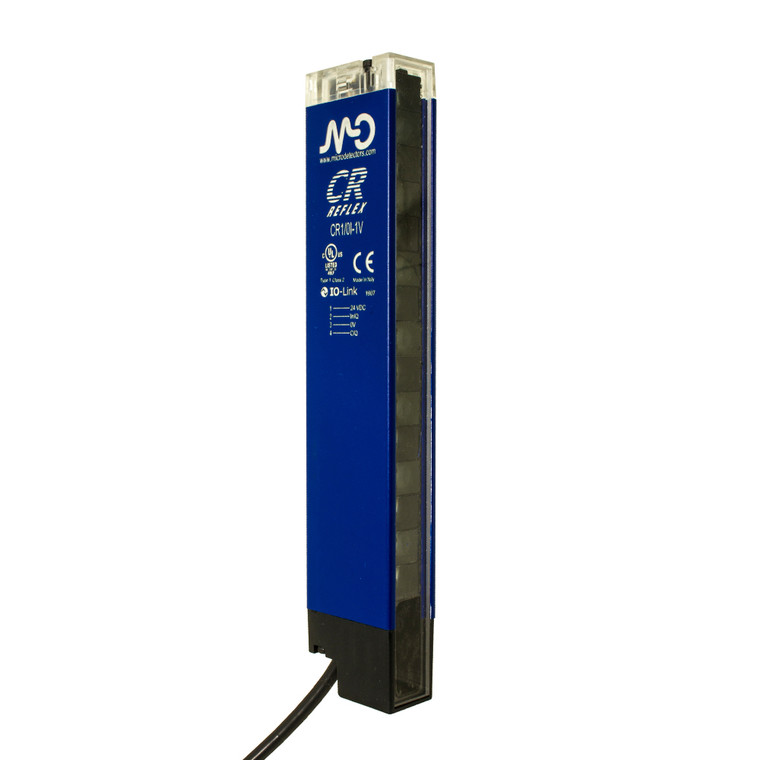

Datasensing CR1/0I-1V Sensors
Datasensing
$491.89
The Datasensing CR1/0I-1V Sensors are advanced retroreflective polarized area sensors designed for precise object detection and area monitoring. With a controlled height of 149 mm and a maximum operative distance of up to 4.5 meters, these sensors are ideal for applications requiring high accuracy and reliability. They feature a minimum object detection diameter of 6 mm and offer two teach-in types for sensitivity adjustment: fine and standard. The optical pitch is set at 10 mm, ensuring precise detection across the area.
These sensors boast a robust protection degree of IP67, making them suitable for harsh environments. They include a blanking function and are equipped with IO Link/PNP output types, supporting both NO and NC output functions. The switching frequency is 320Hz, and they operate within a voltage range of 12 to 30VDC. The sensors have a no-load supply current of 135mA and a load current of 160mA, with a minimal leakage current of ?1?A.
The CR1/0I-1V Sensors are designed with user-friendly features such as LED indicators for power supply alignment and dark/light status. They offer short-circuit and reverse polarity protection, ensuring durability and safety. The sensors are housed in aluminum with a PMMA active head material, and they come with an RL136 reflector and fixing kit for easy installation. Operating efficiently in temperatures ranging from -10°C to +55°C, these sensors are CE, cULus, and UKCA approved, meeting EMC compatibility standards.
- Nominal sensing distance:
- 0,2 4,5m (with RL136)
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 149mm
- minimum detectable object:
- Ø 3 10mm @ 2m RL136 - Ø 3 20mm @ 4,5m RL136
- number of rays:
- 14
- Sensitivity adjustment:
- Teach in: fine < 3s
- Function Principle:
- Retroreflective polarized area sensor
- Output type:
- IO Link/PNP
- Output Function:
- NO/NC
- Switching frequency:
- 320Hz
- Operating Voltage:
- 12...30VDC
- No-Load supply current:
- 135mA
- Load current:
- 160mA
- Leakage current:
- ?1?A
- Output voltage drop:
- 1,6Vdc @ 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- green: power supply-alignment
- Time delay before availability:
- < 700ms
- Short-circuit protection:
- Yes (autoreset)
- Reverse Polarity Protection:
- Yes
- Emission:
- Red (617nm)
- Interference to external light:
- 5000lux (fluorescent lamp)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 187mm x 20mm x 36mm
- Weight:
- 170g
- Housing Material:
- Aluminim
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Operating temperature:
- -10°C + 55° C (no condensation)
- Approvals:
- CE, cULus,UKCA
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- RL136 reflector + fixing kit (ST151)
- Dimensions:
- 187x20x36
- Operating Temperature:
- -10°C + 55° C (without freeze)
- Mechanical Protection:
- IP67
