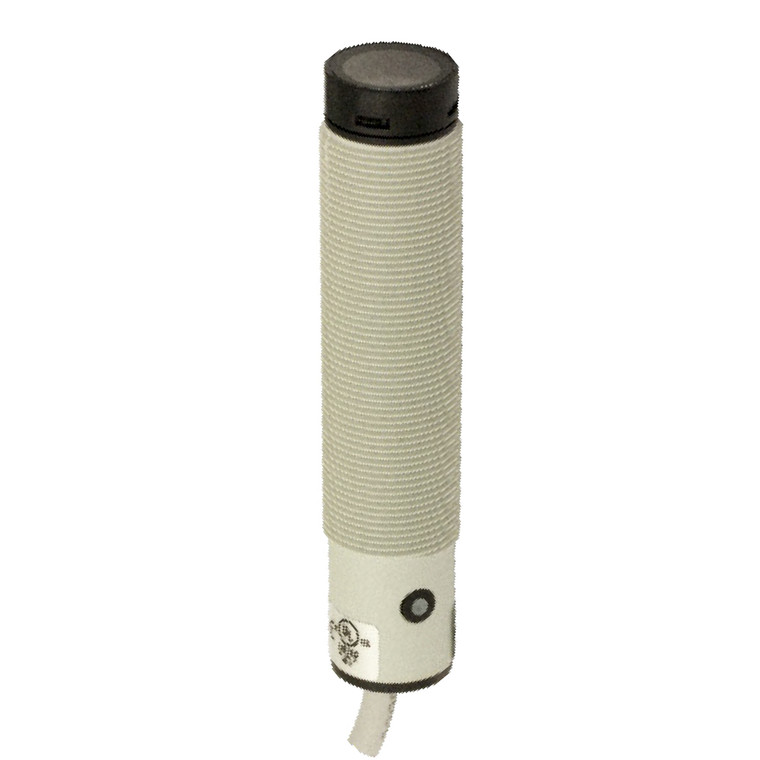

Datasensing FAI4/BN-0A Sensors

The Datasensing FAI4/BN-0A Sensors offer a comprehensive solution for precise detection needs. Designed with a robust M18 housing, these sensors operate efficiently within a 10...30 Vdc power supply range. They feature both axial and radial optics with a flat surface, making them versatile for various applications. The retro-reflective models are particularly adept at detecting transparent objects, thanks to their red emission and IP67 protection degree, ensuring durability in challenging environments. These sensors are available in metallic or plastic housing, providing flexibility based on your specific requirements. Each model includes a sensitivity adjustment feature, allowing for fine-tuning to achieve optimal performance. With total protection against electric damages, these sensors are both CE and cULus listed, ensuring compliance with international standards. Key specifications include a nominal sensing distance of 200mm, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. The function principle is based on diffuse reflection for short distances, up to 200mm, with an axial optic position. The output type is NPN NO+NC, with a switching frequency of 250Hz and a response time of 2ms. The sensors are equipped with LED indicators for easy status monitoring and offer comprehensive protection features, including short-circuit, overvoltage, and reverse polarity protection. Constructed with durable materials such as PBT/PC for the housing and PC for the active head, these sensors are built to withstand operating temperatures from -25°C to +70°C without freezing. They are also designed to resist shocks and vibrations, adhering to IEC standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate installation and use.
