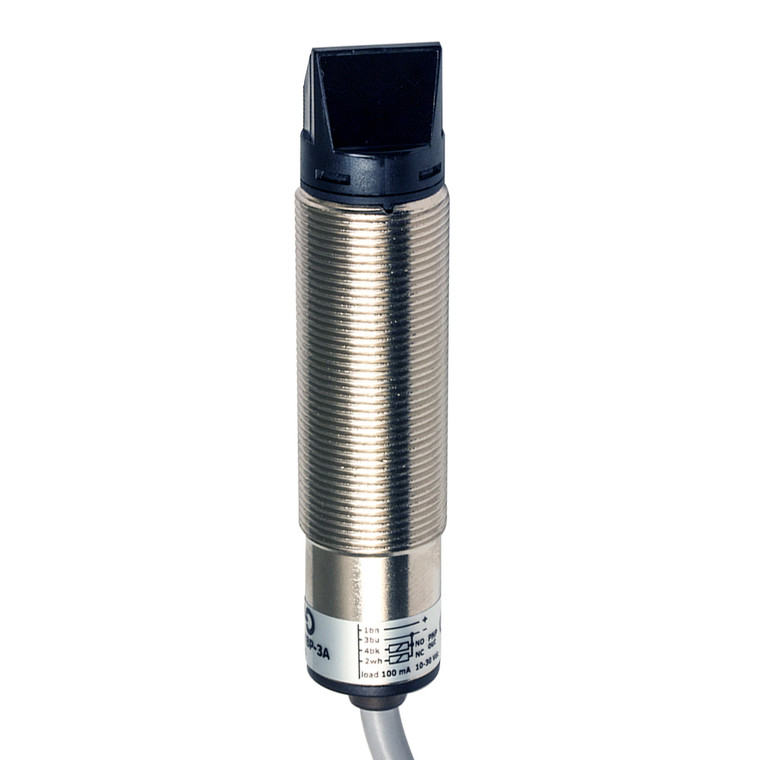

Datasensing FAI5/BP-3A Sensors
Datasensing
$87.74
The Datasensing FAI5/BP-3A Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° diffuse reflection function, these sensors offer a nominal sensing distance of 200mm, making them ideal for short-distance applications. The robust design includes a metal housing with IP67 protection, ensuring durability in harsh environments. With a PNP NO+NC output type, these sensors provide reliable switching capabilities. The sensors operate on a 10
30VDC power supply and are equipped with a 2m axial cable for easy installation. They boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate performance. The sensors are protected against short circuits, overvoltage, and reverse polarity, offering total protection against electrical damages. Additionally, they are CE and cULus listed, guaranteeing compliance with international standards. The compact M18 design, along with sensitivity adjustment and LED indicators, makes these sensors versatile and user-friendly for various industrial applications.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
