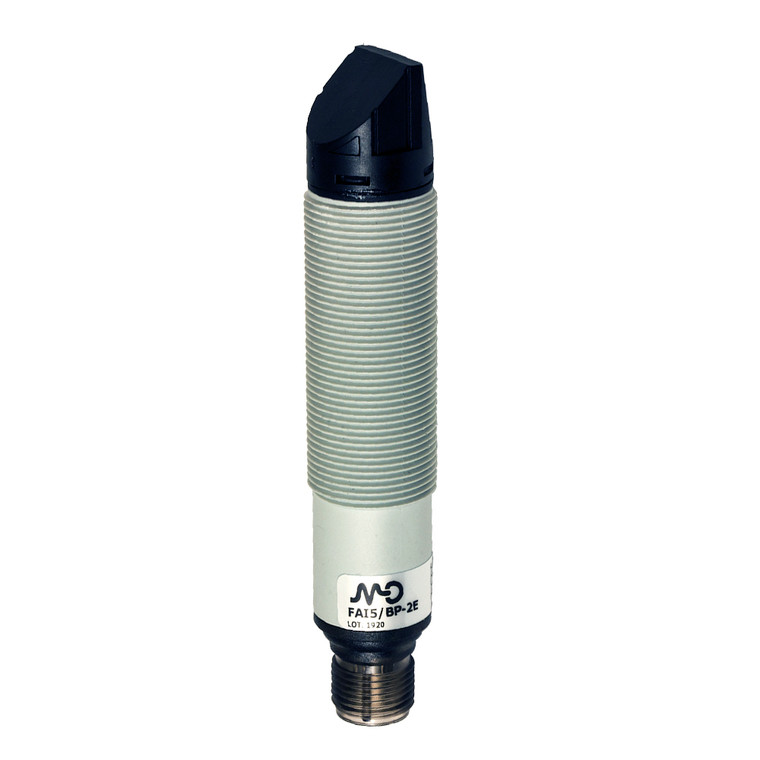

Datasensing FAI6/BP-2E Sensors
Datasensing
$85.60
The Datasensing FAI6/BP-2E Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 400mm, making them ideal for medium-distance applications. With a robust M18 housing available in both metallic and plastic options, they ensure durability and reliability in various environments. The sensors operate on a 10...30 VDC power supply and are equipped with PNP NO+NC output functions, providing flexibility in integration.
Engineered with a radial optic position and a flat surface, the FAI6/BP-2E models are perfect for detecting transparent objects, thanks to their retro-reflective capabilities and red emission. They boast an IP67 protection degree, ensuring complete protection against dust and water ingress. The sensors are designed to withstand thermal drift of ?10% Sr and offer a repeat accuracy of 5%, ensuring consistent performance.
Additional features include short-circuit and overvoltage protection, reverse polarity protection, and a quick response time of 2ms. The sensors are equipped with LED indicators for easy status monitoring and can handle interference from external light sources up to 3000lux (incandescent lamp) and 10000lux (sunlight). With approvals from CE and cULus, these sensors meet high safety and quality standards, making them a reliable choice for industrial applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
