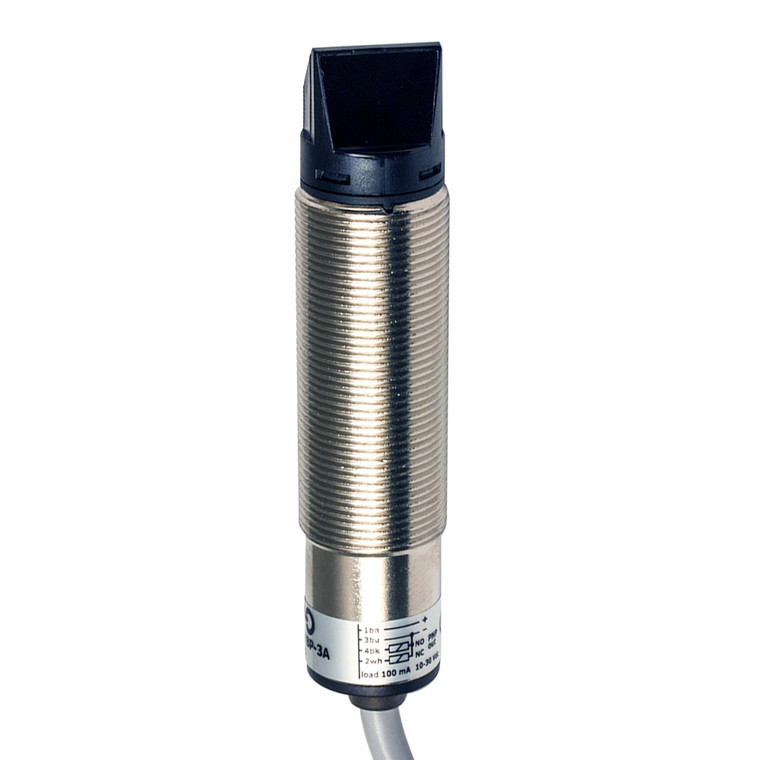

Datasensing FAI6/BP-3A Sensors
Datasensing
$94.37
The Datasensing FAI6/BP-3A Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 400mm, making them ideal for medium-range applications. The robust construction includes a nickel-plated brass housing with a PC cable exit, ensuring durability and reliability in various environments. With an IP67 protection rating, these sensors are resistant to dust and water, suitable for challenging industrial settings.
Equipped with a PNP NO+NC output type, the FAI6/BP-3A Sensors provide versatile connectivity options. The sensors operate on a 10
30VDC power supply and feature a low no-load supply current of ?30mA, ensuring energy efficiency. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, allowing for quick and accurate detection.
The sensors are designed with user convenience in mind, featuring LED indicators for easy status monitoring. They also include comprehensive protection mechanisms such as short-circuit protection, overvoltage, and reverse polarity protection, safeguarding against electrical damages. The sensors are CE and cULus listed, ensuring compliance with international safety standards.
With a compact M18 x 1/L=78.5mm dimension and a weight of 130g, these sensors are easy to install and integrate into existing systems. The 2m PVC cable provides flexibility in installation, while the supplied M18 x 1 nuts facilitate secure mounting. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing FAI6/BP-3A Sensors are engineered to perform reliably in diverse conditions.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
