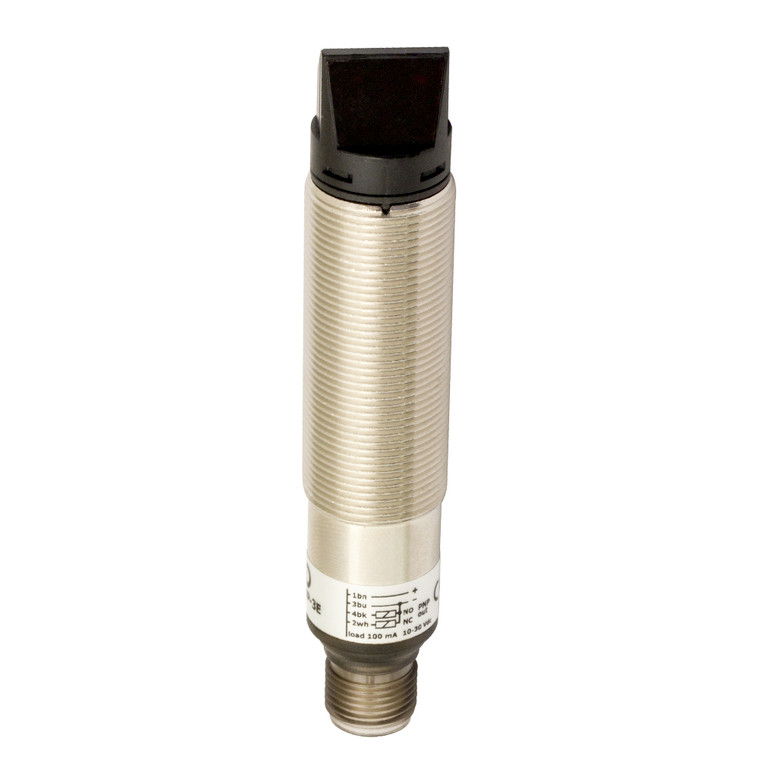

Datasensing FAI6/BP-3E Sensors
Datasensing
$91.78
The Datasensing FAI6/BP-3E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 400mm, making them ideal for medium-distance applications. With a robust M18 housing, available in both metallic and plastic options, they ensure durability and adaptability in various environments. The sensors operate on a 10...30 VDC power supply and are equipped with PNP NO+NC output types, providing flexibility in integration.
Engineered for high performance, the FAI6/BP-3E sensors boast a repeat accuracy of 5% and a fast switching frequency of 250Hz, with a response time of just 2ms. They are protected against short circuits, overvoltage, and reverse polarity, ensuring reliable operation even in challenging conditions. The sensors are equipped with LED indicators for easy status monitoring and have a high resistance to external light interference, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight.
With an IP67 protection degree, these sensors are resistant to dust and water, making them suitable for harsh industrial environments. They are CE and cULus listed, ensuring compliance with international safety standards. The sensors come with M12 plug connections and are supplied with M18 x 1 nuts for easy installation. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing FAI6/BP-3E Sensors are a reliable choice for various automation and detection applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
