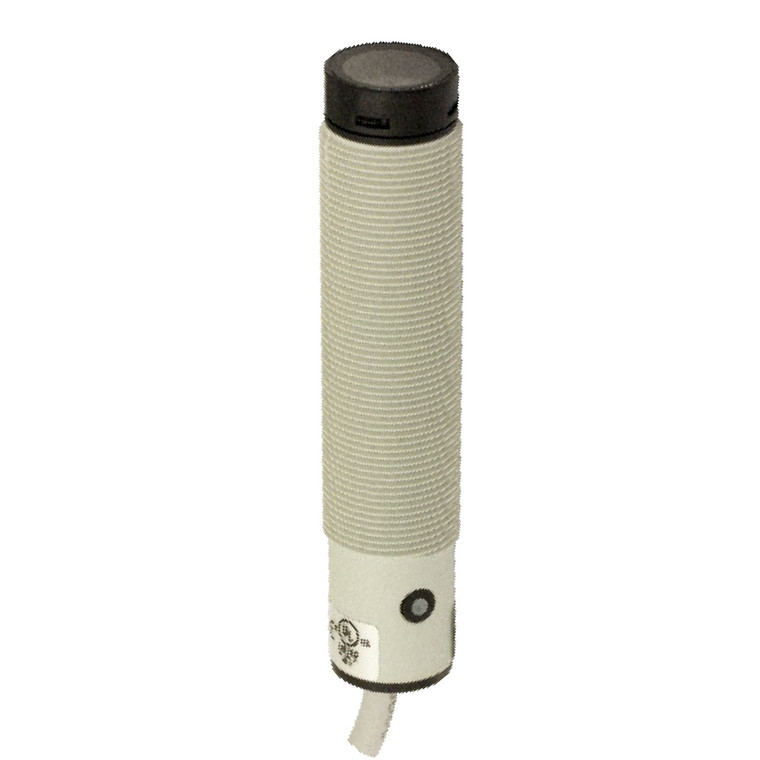

Datasensing FALD/BP-0A Sensors
Datasensing
$91.09
The Datasensing FALD/BP-0A Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, ensuring precise detection capabilities. The visible red laser emission models provide enhanced visibility and accuracy. With an IP67 protection degree, these sensors are built to withstand harsh environments, offering total protection against any type of electric damages. Available in both metallic and plastic housing, they are versatile for various applications. Sensitivity adjustment is made easy with a trimmer, allowing for fine-tuning to meet specific needs. The sensors are equipped with PNP NO+NC output types, supporting a switching frequency of 1Khz and a response time of 500µs. They are designed to handle a nominal sensing distance of 50m with a repeat accuracy of 5%. The sensors are CE and cULus listed, ensuring compliance with international standards. Additional features include short-circuit protection, reverse polarity protection, and LED indicators for output status. The compact design, with dimensions of M18 x 1/L=68.5mm and a weight of 50g, makes installation straightforward. Operating efficiently in temperatures ranging from -15°C to +55°C, these sensors are ideal for a wide range of industrial applications. Supplied with nuts and a screwdriver, they are ready for immediate deployment.
- Nominal sensing distance:
- 50m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
