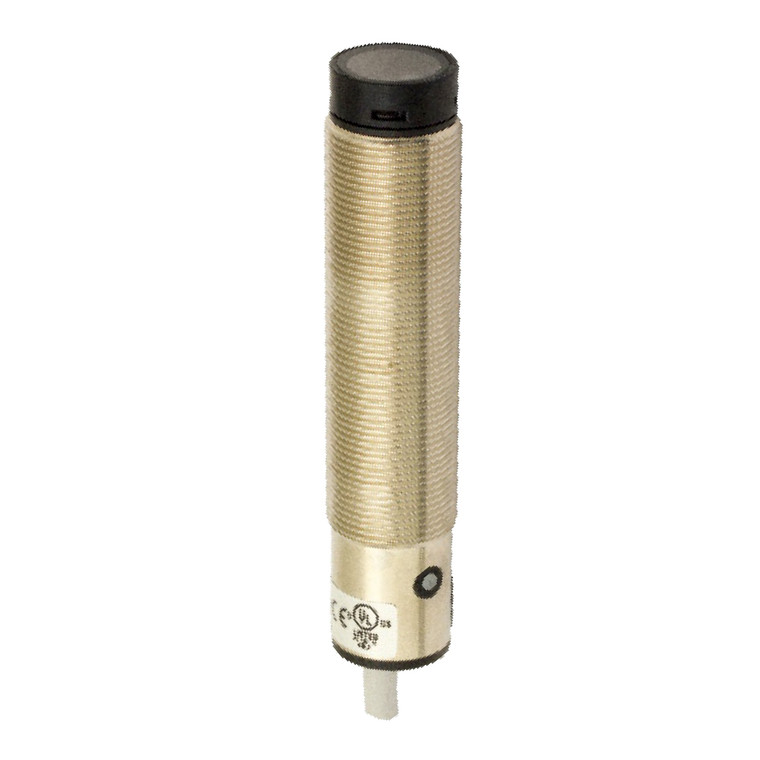

Datasensing FALH/X0-1A Sensors
Datasensing
$191.04
The Datasensing FALH/X0-1A Sensors offer a comprehensive solution for precise detection needs. Designed with a robust M18 housing, these sensors operate efficiently within a 10...30 Vdc power supply range. They feature both axial and radial optics with a flat surface, ensuring versatile application. The visible red laser emission models provide clear and accurate sensing, with a nominal sensing distance of up to 50 meters. Built to withstand harsh environments, these sensors boast an IP67 protection degree and are available in both metallic and plastic housings.
Each model includes sensitivity adjustment, allowing for tailored performance in various settings. The sensors are equipped with total protection against any type of electric damages, ensuring reliability and longevity. They are CE and cULus listed, meeting high safety and quality standards. The emitter function principle, with a check input, ensures precise operation, while the LED indicators provide clear status updates.
With a compact design of M18 x 1/L=83.6mm and a weight of 130g, these sensors are easy to install and integrate into existing systems. The nickel-plated brass or PC cable exit housing material, along with a glass/PC active head, ensures durability. Operating efficiently in temperatures ranging from -15°C to +55°C, these sensors are ideal for a wide range of industrial applications. The Datasensing FALH/X0-1A Sensors are the perfect choice for those seeking reliable, high-performance sensing solutions.
- Nominal sensing distance:
- 50m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Function Principle:
- Emitter with check
- Emitter/Receiver:
- Emitter
- Check Input:
- BK/2 connected to 0Vdc swithing off the emission
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (power ON) yellow (Emiss. ON) yellow(Emiss. OFF)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
