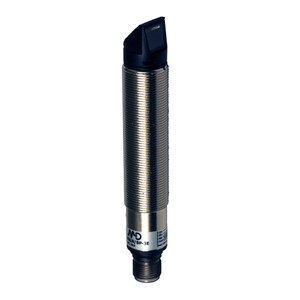

Datasensing FALH/X0-2E Sensors
Datasensing
$206.08
The Datasensing FALH/X0-2E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° radial optic with a visible red laser emission, these sensors offer a nominal sensing distance of 50 meters. They are equipped with a robust M18 housing, available in both metallic and plastic options, ensuring durability and protection with an IP67 rating. The sensors operate on a 10...30 VDC power supply and are designed to withstand thermal drift of ?10% Sr, with a repeat accuracy of 5%.
The FALH/X0-2E Sensors include sensitivity adjustment for all models, providing flexibility in various applications. They are equipped with LED indicators for easy status monitoring: green for power ON, and yellow for emission ON/OFF. The sensors are protected against electric damages, including reverse polarity and impulsive voltage, ensuring long-term reliability.
With a compact design of M18 x 1/L=107.6mm and a lightweight of 30g, these sensors are easy to install using the M12 plug connection. They are suitable for operating temperatures ranging from -15°C to +55°C, making them versatile for different environments. The sensors are CE and cULus listed, meeting high standards of safety and performance. Ideal for industrial applications, the Datasensing FALH/X0-2E Sensors deliver exceptional performance with total protection against shocks and vibrations, complying with IEC standards.
- Nominal sensing distance:
- 50m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Function Principle:
- Emitter with check
- Emitter/Receiver:
- Emitter
- Check Input:
- BK/2 connected to 0Vdc swithing off the emission
- Optic position:
- Radial 90°
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (power ON) yellow (Emiss. ON) yellow(Emiss. OFF)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
