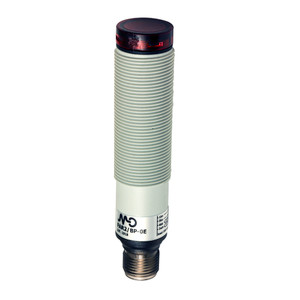

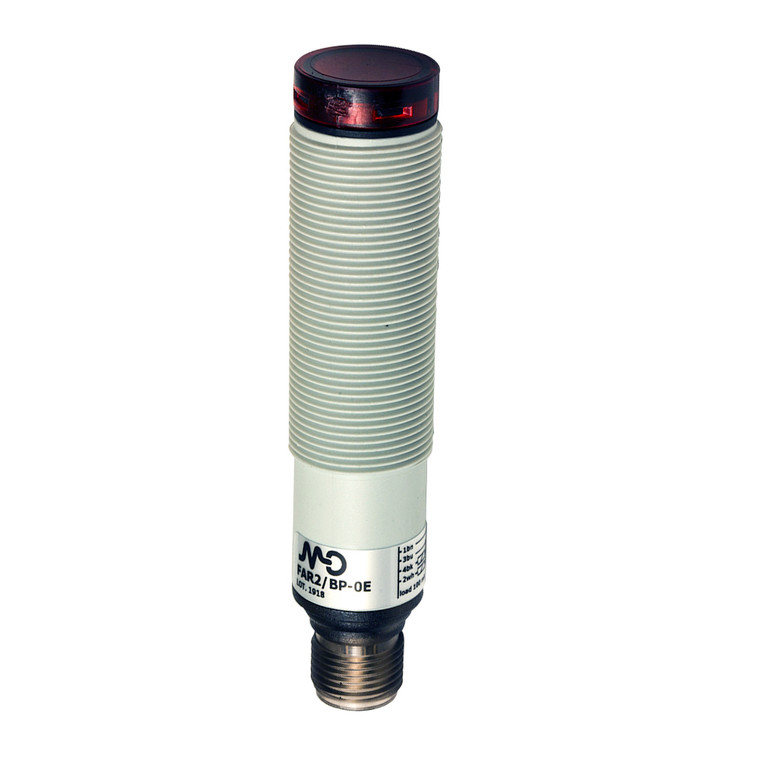

Datasensing FAR2/BN-0E Sensors
Datasensing
$63.50
The Datasensing FAR2/BN-0E Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them ideal for various applications. The retro-reflective models are specifically designed for detecting transparent objects, utilizing a red emission and boasting an IP67 protection degree for enhanced durability. Available in both metallic and plastic housings, these sensors provide total protection against any type of electric damages, ensuring reliable operation.
Key specifications include a nominal sensing distance of 100mm, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. While sensitivity adjustment is not available, the sensors operate on a diffuse reflection principle for short distances up to 200mm. The optic position is axial, and the output type is NPN NO+NC, offering both NO and NC output functions. With a switching frequency of 250Hz and a response time of 2ms, these sensors are highly responsive.
The operating voltage ranges from 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensors feature a leakage current of ?10?A and an output voltage drop of ?2V at a load of 100mA. They are equipped with LED indicators for easy status monitoring and offer short-circuit protection with autoreset, overvoltage, and reverse polarity protection.
Designed to withstand external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight, these sensors are robust and reliable. They are compact, with dimensions of M18 x 1 /L =81.6mm, and lightweight at 30g. The housing is made from PBT with a PC plug, and the active head material is PC. The sensors are easy to install with an M12 plug connection and come with supplied accessories, including nuts M18 x 1.
Operating efficiently in temperatures ranging from -25°C to +70°C without freezing, these sensors are CE and cULus approved, ensuring compliance with international standards. They also meet EMC compatibility with EN 60947-5-2 and are tested for shocks and vibrations according to IEC standards. With an IP67 degree of protection, the Datasensing FAR2/BN-0E Sensors are built to withstand harsh environments, making them a reliable choice for various industrial applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
