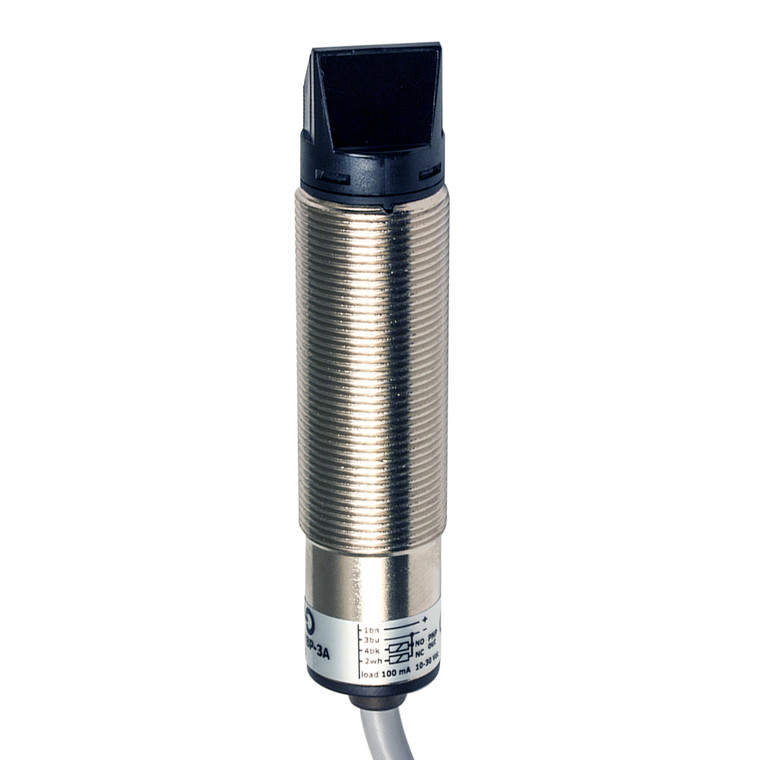

Datasensing FAR2/BP-3A Sensors
Datasensing
$90.08
The Datasensing FAR2/BP-3A Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° diffuse reflection function, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. The sensors operate on a 10...30 VDC power supply and are equipped with a PNP NO+NC output type, ensuring reliable performance with a switching frequency of 250Hz and a rapid response time of 2ms.
Constructed with a robust nickel-plated brass housing and a PC cable exit, the FAR2/BP-3A sensors are built to withstand harsh environments, boasting an IP67 protection degree. The sensors are equipped with a 2m PVC cable for easy installation and feature a radial optic position at 90°, enhancing their versatility in various setups. With a thermal drift of Sr ?10% and a repeat accuracy of 5%, these sensors maintain consistent performance even under fluctuating conditions.
The sensors are designed with total protection against electric damages, including short-circuit protection with autoreset, overvoltage, and reverse polarity protection. They are also resistant to external light interference, withstanding up to 5000lux from incandescent lamps and 10000lux from sunlight. The LED indicators provide clear status updates, ensuring easy monitoring and maintenance.
Approved by CE and cULus, the Datasensing FAR2/BP-3A Sensors meet high standards of safety and reliability. They are EMC compatible with EN 60947-5-2 and can endure shocks and vibrations as per IEC standards. With supplied accessories like nuts M18 x 1, these sensors are ready for immediate deployment in a wide range of industrial applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
