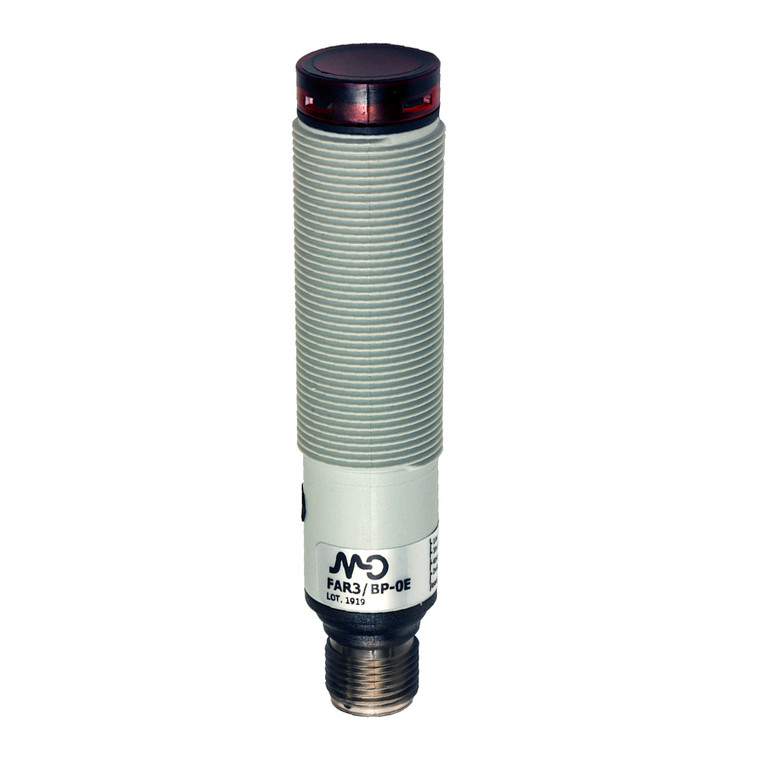

Datasensing FARL/BN-0E Sensors
Datasensing
$92.78
The Datasensing FARL/BN-0E Sensors are designed for precision and reliability in detecting transparent objects. These photoelectric sensors feature an axial retroreflective design with a nominal sensing distance of 1.5 meters, adjustable via a trimmer for optimal sensitivity. With a robust IP67 protection rating, they are suitable for challenging environments, offering total protection against electric damages. The sensors operate on a 10
30 VDC power supply and are equipped with NPN NO+NC output functions, ensuring versatile application compatibility.
Constructed with a durable PBT/PC housing and an M12 plastic connector, these sensors are lightweight yet sturdy, weighing only 30g. They are engineered to withstand temperatures ranging from -25°C to +70°C, making them ideal for various industrial settings. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate object detection.
Additional features include short-circuit and overvoltage protection, reverse polarity protection, and LED indicators for output status. The sensors are CE and cULus approved, meeting stringent safety and performance standards. Supplied with M18 x 1 nuts and a screwdriver, the Datasensing FARL/BN-0E Sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 1,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 0,1m
- Function Principle:
- Transparent object
- Notes:
- On RL113G or RL116 reflector
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
