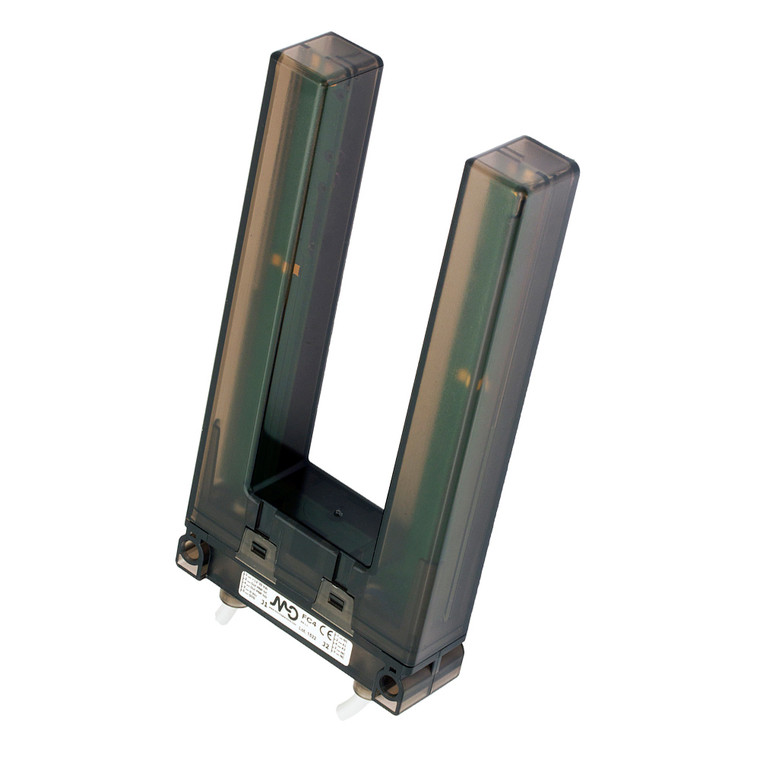

Datasensing FC4/V-00 Sensors

The Datasensing FC4/V-00 Sensors are advanced slot sensors equipped with four beams, designed for precise belt tracking control. Operating within a voltage range of 10-30Vdc, these sensors feature a robust alarm output cable measuring 600mm, complete with an M12 plug for seamless connectivity. The sensors boast a beam angle of ± 15° and are sensitive enough to detect a single sheet of 80g/m² white paper. With a tilting hysteresis of 7mm and an optics diameter of 3mm, they ensure accurate detection and performance. The FC4/V-00 sensors offer double static outputs along with an alarm contact, utilizing 2 x complementary PNP output types. They operate at a switching frequency of 100 Hz with a 1/1 dark-light ratio, and a rapid sampling period of 4ms. The response times for outputs ONO and ONC are 4.7ms, while the contact output A responds in 8ms (open) and 500ms (close). These sensors are designed to handle a no-load supply current of ? 70mA and a load current of ? 300mA, with a leakage current of ? 10µA and an output voltage drop of ? 2.5V at a load of 100mA. Constructed with a durable PC housing, the sensors are lightweight at 200g and measure 26.4 x 83 x 162mm. They are built to withstand harsh conditions, with an operating temperature range of -20°C to +55°C and a storage temperature range of -40°C to +75°C. The sensors are protected against dust and water ingress with an IP67 rating and are approved with CE certification. They conform to EMC directives and are resistant to shocks and vibrations as per IEC standards. Ideal for industrial applications, these sensors provide reliable performance and durability.
